Rotary Kiln Calciner
HYD Series Rotary Kiln Calciner

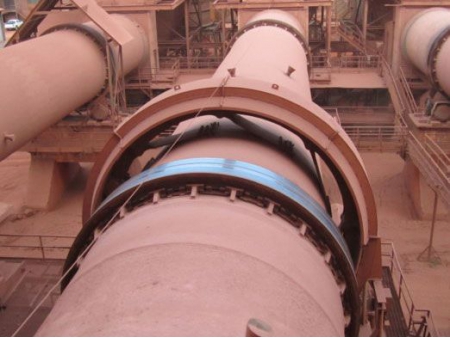

The rotary kiln calciner provides high-temperature treatment for powders and granules, making it a vital tool for processes like pyrolysis, phase transformation, oxidation, and activation. Designed with a rotating drum, heating system, insulation, and precise feed and discharge controls, the kiln is engineered to handle demanding operations. Depending on the energy source, options include gas-fired or electric heating systems, ensuring versatility for various applications.
Widely used in industries like cement, metallurgy, and chemicals, the rotary kiln calciner excels in processing molecular sieve catalysts, catalytic cracking agents, oil sands, fly ash, alumina, chromite, cement clinker, active lime, and dolomite.
| Rotary kiln diameter (mm) | Rotation speed (rpm) | Power (kW) | Temperature (℃) | Type |
| Ø400×6000 | 0.5-5 | 2.2-3 | 350~1050 | Electric heating |
| Ø600×8000 | 0.5-4 | 2.2-3 | Electric heating | |
| Ø800×10000 | 0.5-4 | 3--4 | Electric heating / Gas burner | |
| Ø1000×12000 | 0.5-3 | 5.5-7.5 | Electric heating / Gas burner | |
| Ø1200×14000 | 0.5-3 | 5.5-7.5 | Electric heating / Gas burner | |
| Ø1400×16000 | 0.5-2 | 5.5-7.5 | Electric heating / Gas burner | |
| Ø1600×18000 | 0.5-2 | 7.5-11 | Electric heating / Gas burner | |
| Ø1800×20000 | 0.5-2 | 7.5-11 | Electric heating / Gas burner | |
| Ø2000×22000 | 0.5-2 | 15-22 | Electric heating / Gas burner | |
| Ø2200×24000 | 0.5-1.5 | 15-22 | Electric heating / Gas burner | |
| Ø2400×26000 | 0.5-1.5 | 18.5-22 | Electric heating / Gas burner | |
| Ø2600×28000 | 0.5-1.5 | 18.5-22 | Electric heating / Gas burner | |
| Ø2800×30000 | 0.5-1.5 | 22-30 | Electric heating / Gas burner |
- Flexible heat source options, including electric, gas, or oil, ensure adaptability. The kiln's compact design and excellent sealing capabilities minimize material and heat loss
- Automatic temperature control with segmented settings and over-temperature alarms keeps the process stable. The internal wall's temperature distribution is uniform, with control precision within ±5°C, ensuring consistent results
- High heat transfer efficiency and superior insulation prevent excessive heat loss, keeping the kiln's surface temperature below 50°C
- Burners offer over 99% thermal efficiency, with single-pass heat efficiency exceeding 41%. The burner flame is powerful, whether columnar or flat, and ensures robust performance
- Emission control is a priority, with NOx concentration in exhaust gases kept below 100 mg/Nm³, ensuring compliance with environmental standards
- Calcining temperature is adjustable by controlling the kiln's speed and angle, with precise operations possible across a range from 350°C to 1050°C
