90W-250W Brushless DC Motor Controller
Request a Quote
Intelligent Motor Control & Drive Solutions

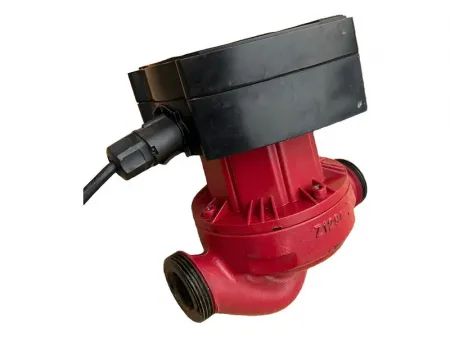

Motor control board for hot water heater circulation pump
90W-250W Brushless DC Motor Controller
Motor control board for hot water heater circulation pump-
Supply voltage: 230V AC
-
Power: 90W-250W (pump head 6m-12m)
-
Control method: non-inductive FOC (sensorless vector control)
-
Control mode: PWM mode (40Hz-4kHz), 0-10V analog voltage speed control mode, self-containing mode, proportional mode, constant pressure control mode
-
Energy efficiency index: EEI<0.23
Applications
Supply and circulation for wall-hung boilers/gas water heaters, primarily supporting renowned European wall-hung boiler manufacturers.
Features
- Optimizes performance and efficiency with a reliable 230V AC supply voltage.
- Offers impressive performance with a power consumption range of 90W-250W and a pump head range of 6M-12M.
- Utilizes cutting-edge technology for versatile control options.
- Non-inductive FOC vector control, PWM support from 40Hz to 4kHz, and speed regulation through 0-10V analog voltage.
- Self-adaptive, proportional, constant voltage, and other control modes.
- Has an impressive EU Energy Efficiency Index of less than 0.23.
- Commonly used in water supply and circulation systems of wall-hung boilers and gas water heaters.
