90mm 250W Brush DC Gear Motor Manufacturer

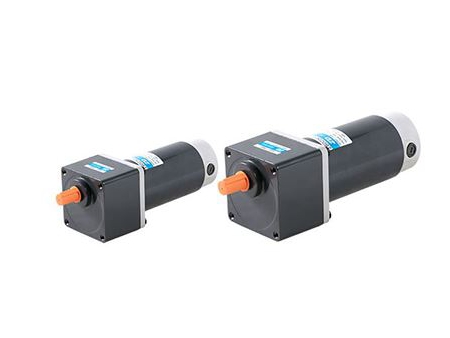

90mm 250W Brush DC Gear Motor

Request a Quote

View All: http://zd-drivers.com/2-1-11-brush-dc-gear-motor.html

Motor Specifications

Model	Voltage	Power	No-load Parameters		Load Parameters			Brush Life	Motor Weight
	Voltage	Power	Speed	Current	Speed	Torque	Current	Brush Life	Motor Weight
	V	W	/min	A	r/min	mN.m	A	H	kg
Z55D250-24	24	250	3400	3.0Max	3000	796	16.0	2000	3.2
Z550250-90	90	250	3300	1.2Max.	3000	796	4.20	2000	3.2
Z550250-220	220	250	3300	0.9Max.	3000	796	2.20	2000	3.2

Gear Motor-Torque TableAllowance Torque Unit: N.m

Type Motor/Gearhead	Gear Ratio	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
Type Motor/Gearhead	Speed r/min	400	333	240	200	166	120	100	83	60	50	40	33	30	25	20	16
Z55D250-24GU-30S	5GU()RC 5GU()RT	4.35	5.20	6.50	8.70	10.4	14.5	17.4	18.8	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0
Z55D250-24GU-30S	5GU()RC 5GU()RT	44.4	53.0	66.3	88.7	106	148	177	192	200	200	200	200	200	200	200	200

Type	Gear Ratio	3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
Z55D250-24GU	Speed r/min	1000	833	600	500	400	333	300	240	200	167	150	120	100	83	75	60	50	40	33	30	25	20	17	15
	5GU()KB	1.93	2.32	3.22	3.87	4.83	5.80	5.80	7.25	8.70	10.4	10.4	13.1	15.7	18.8	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0
	5GU()KB	19.0	22.7	31.6	37.9	47.4	56.9	56.9	71.1	85.3	102	102	128	154	184	200	200	200	200	200	200	200	200	200	200

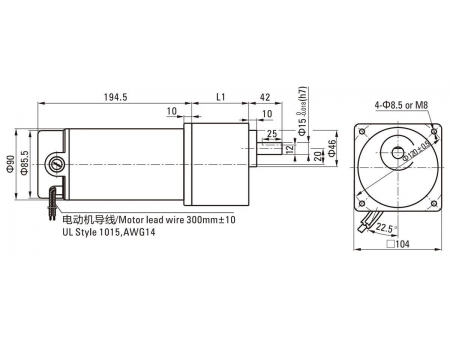

L1=42.5mm
