Color Sorter, Optical Sorting Machine

The optical sorter sorts different rice varieties and removes foreign materials, off colored rice and other impurities mixed with the grains. It is a full color, high capacity sorting machine designed for use with rice, wheat, peas, and other grains.

Features
  • Sensor-based sorting Technology
    The optical sorter uses a sensor-based sorting technology based on high speed cloud image processing technology. It can detect the products with small defects such as disease spots and yellow spots that traditional optical sorter can’t detect.
  • One click operations
    It is easy to install and use. Simply press a button, and the machine will automatically find defective products and impurities thanks to the intelligent rice color sorting algorithm.
  • Professional accessories
    We provide various professional accessories for the optical sorter, including a high megapixel camera, high speed magnetic ejector valve, 15-inch monitor, and more. The machine features an elegant appearance and excellent performance.
  • Optional devices
    The optical sorter is equipped with an infrared system to detect bad products. It is smart and easily connects to a network to allow real time monitoring of the production status. It sorts relatively good products from rejected products, thus reducing your costs.
Specifications
Model SMY-RS8-C SMY-RS10-C STH-TY8-V STH-TY10-V
Capacity (T/H) 5-20 6-25 6-22 7-28
Sorting Accuracy ≥99.98% ≥99.98% ≥99.99% ≥99.99%
Number of Channel Chute 420 600 504 630
Power(kW) 3.5 4.2 4.7 5.8
Dimensions (L*W*H)(mm) 2950*1560*2143 3700*1560*2143 3091*1443*1956 3719*1443*1956
Weight (Kg) 1600 1950 1708 2084
Working Principle

The core components of the color sorter include a vibrator, chute, camera, magnetic ejector valve, and main control board. The machine uses a photoelectric detection technology to automatically sort the heterochromatic granules from raw material according to the differences in material optical properties. Foreign material and unsuitable materials will be removed using an airflow ejection powered by the magnetic ejector valve.

Core Components

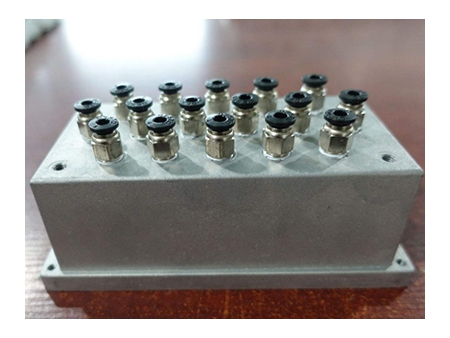

  • Magnetic ejector valve

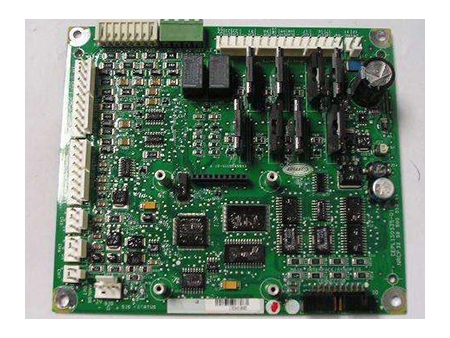

  • Main control board
  • Full-color camera
Samples
  • Accepted rice
  • Milky white rice
  • Yellow rice
  • Off-color rice
  • Malignant impurities such as glass

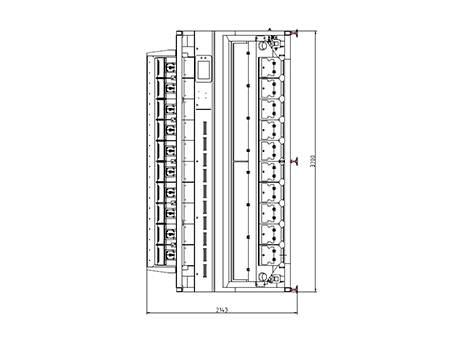

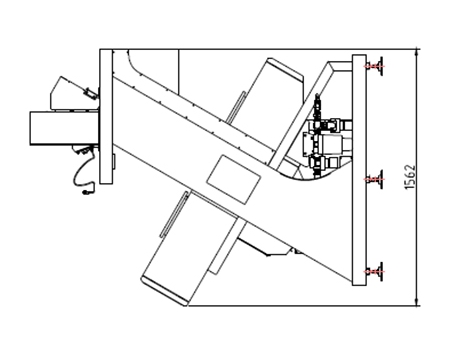

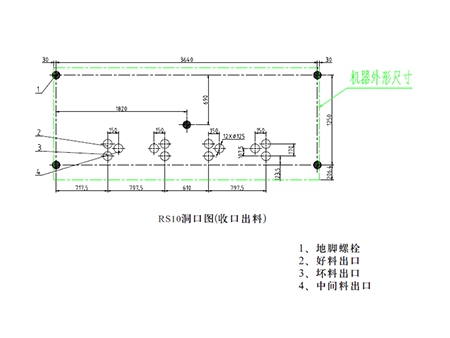

Structure Diagram
