Optical Film Coating Machine
Surface finishing system for coating UV protective film on glass
Our optical film coating machine is designed to apply protective UV film to ultra-thin electronic glass. This process is vital for protecting these delicate glass components used in electronics. This coating machine is built for precision, ensuring that each piece of glass gets exactly the right amount of coating.
| Model | ||
| Working width (mm) | ≤1250 | ≤1550 |
| Working thickness (mm) | ≥0.3 | ≥0.3 |
| Working length (mm) | 400--2000 | 400--2000 |
| Feeding speed (m/min) | 0-20 | 0-20 |
| Total power (kW) | 38.25 | 54.42 |
| Dimensions (L×W×H) | 15000×2450×1400 | 15000×2750×1400 |
| Power supply (V/Hz) | 380/50 | 380/50 |
| Coating type | UV coating | UV coating |
Our optical film coating machine is specially designed for applying UV protective film on ultra-thin electronic glass. This process ensures a smooth and even coating, which is essential for the durability and quality of electronic glass products. The machine operates efficiently, coating each piece of glass quickly and uniformly, which is critical in high-volume production environments.
Key Benefits
- High productivity: Speed is key in our process, with an impressive 15-30 seconds per sheet and a daily output of 1000-2000 pieces. This efficiency far surpasses traditional methods like spraying or screen printing. It's especially effective for 1500*1900 mm glass substrates.
- Reduced workforce: Manage your production with just two operators per line, optimizing labor usage.
- Cost-effective operations: Our system maximizes ink use, significantly reducing waste and eliminating the frequent need for screen changes.
- Eco-friendly approach: Embracing UV ink technology, we step away from traditional methods, offering an environmentally conscious alternative that produces zero pollution.
Applications
Tailored for 1500*1900 mm ultra-thin glass from renowned manufacturers, our optical film coating machine is versatile for various industry needs. (Corning, Electric Nitrate, Asahi Nitrate, Schott, Panda, etc.)
See the Difference

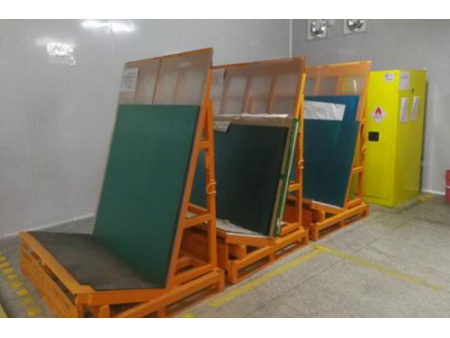

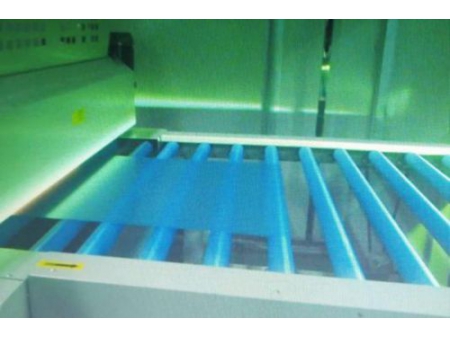

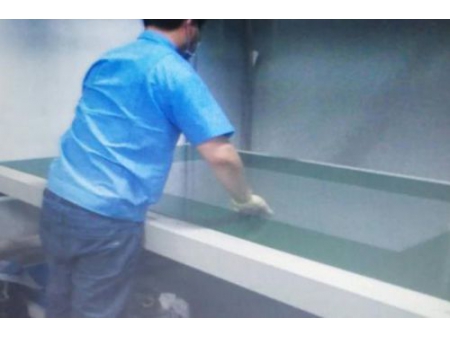

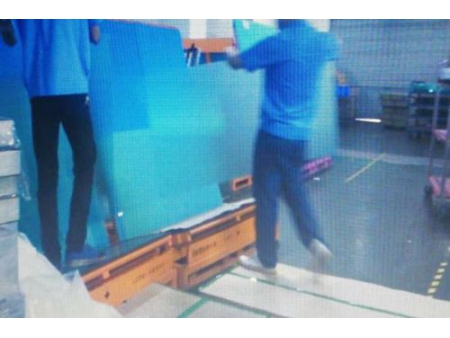

Photos from our facilities demonstrate the transformative effects of our coating process on large ultra-thin electronic glass sheets.
