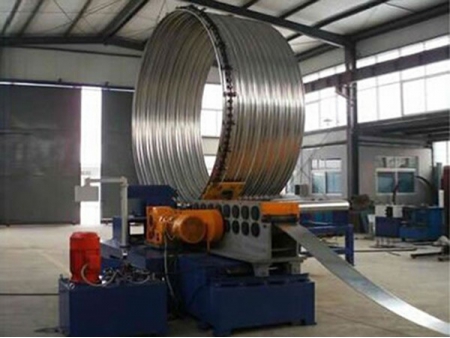

Large Diameter Culvert Tunnel Pipe Machine
Our large diameter culvert tunnel pipe machine is particularly developed for producing corrugated spiral steel pipes with large diameter. For high automation, the tunnel pipe machinery is equipped with PLC.
- Strip width 300mm
- Capacity of decoiler Max. 5000kg
- Machine weight 10tons
- Total power 44.5kW
Technical Parameters
- Tube diameter500-5000mm
- Strip thickness2.0-3.0mm carbon steel or galvanized steel
- Strip width300mm
- DecoilerHydraulic jaw expansion
- Capacity of decoilerMax. 5000kg
- Lock seam type of steel pipeSpiral seam lock
- Corrugation sizeWidth 76mm, height 25mm
- Working speed0-20m/min, continuous and adjustable
- Cutting methodPlasma cutting
- Machine weight10tons
- Machine size(L×W×H) (Main machine)4500×1600×1400mm
- Machine size(L×W×H) (Decoiler)2500×1200×2000mm
- Machine size(L×W×H) (Unloading rack)2000×1600×1400mm
- Total power44.5kW
- Control typePLC HMI
