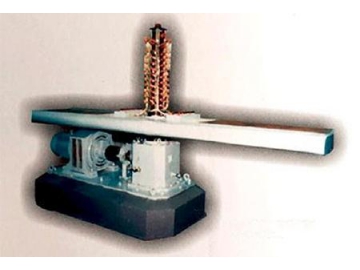

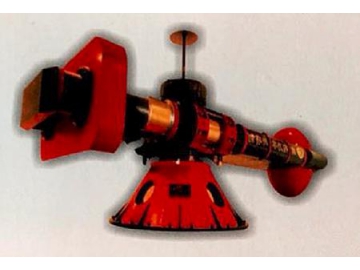

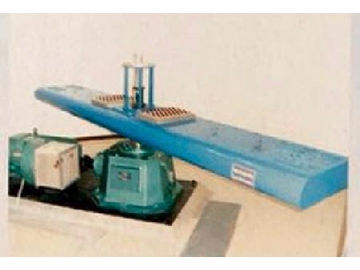

Laboratory Centrifuge
Request a Quote
Application
Laboratory centrifuge can simulate the complex environment such as accelerate speed, vibration and temperature of test objects in the process of movement. It is used in mechanical, electrical performance stability test and product test of complete mineral product or component of mineral product in high overload environment.
Type | Application | Main technical features | |
LJ-1 | Environment test | effective radius:10.8m; max weight of test specimen:2t; highest accelerate speed: 70g | |
LJ-2 | Compound environment experiment | effective radius:7m; highest accelerate speed: 200g(100g); effective load:1t (2t) | |
LJ-3 | Product test | effective radius:1.25m;accelerate speed range:5g~100g; stability:±1% | |
LJ-3A | Product test | effective radius:1.25m; accelerate speed range: 5g~100g; stability:±1% | |
LJ-3B | Product test | effective radius:1.25m; accelerate speed range: 2g~100g; stability:±1% | |
LJ-4 | Product test | effective radius:1.75m; accelerate speed range:2g~100g; stability:±1% | |
LJ-5 | Product test | effective radius:1m; accelerate speed range:0.5g~50g; stability: ±1%; max load:20kg | |
LJ-6 | Product test | effective radius:1.5m; accelerate speed range: 3g~250g; stability: ±1%; max load:100kg | |
LJ-9A | Product test | effective radius:1.75m; accelerate speed range: 2g~250g; stability:±1% | |
JGD-1 | Calibration of sensor | effective radius:0.15m; max load: 0.3kg x 2; accelerate speed range:3g~10g; stability: ±0.3% | |
