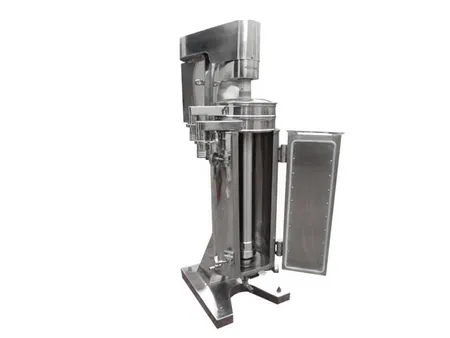

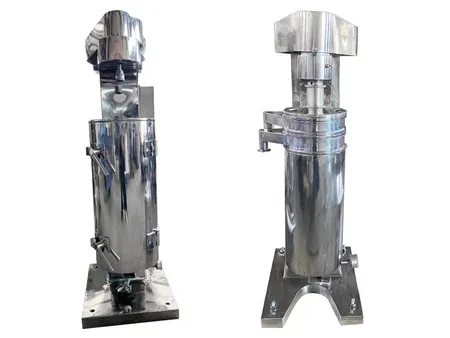

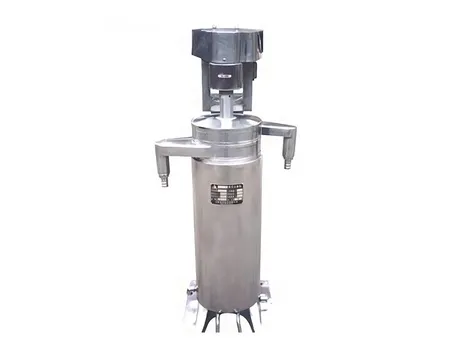

Tubular Centrifuge

Request a Quote

View All: http://pharmaequip-en.com/4-2-1-tubular-centrifuge.html

Pharmaceutical Machinery

API Manufacturing Equipment

GQ150

Centrifugal separation device for separating fine solid particles from liquids

3,000 L/h Throughput Capacity
13,400 RPM Bowl Speed

The tubular centrifuge is designed to separate fine solid particles from liquids, especially the challenging suspensions, particularly those with low concentrations, high viscosity, fine particles, and minimal density differences between phases. This centrifuge excels in the separation and clarification of herbal medicine extracts, plant extracts, medicinal wines, oral liquids, and other pharmaceutical solutions.

This centrifugal separation device is also widely used in chemical and food industries for applications such as extracting paints and dyes, purifying proteins, algae, pectin, rubber solutions, coal tar, and graphite, and refining syrups, glucose, resins, latex solutions, enzymes (SOD), proteins, and soap glycosides.

Specifications

Model	GQ150
Bowl Speed	13400 rpm
Separation Factor	14300
Bowl Diameter	150mm
Bowl Volume	10L
Sedimentation Volume	6L
Throughput Capacity (Water Capacity)	3,000L/h
Power	4.0kW
Power Supply	AC 380V, 50Hz, 3 phase 4 wire
Material Inlet Pressure	≥ 0.05MPa
Cycle Time	8 minutes per cycle (from high-speed rotation to complete stop)
