HN-U Series
Description
150-600ton injection molding machine for thermosetting plastic products

Our thermosetting injection molding equipment is suitable for various industries, as it has the capacity to handle products such as electrical parts, pistons, and appliance handles with ease. With a clamping force capacity ranging from 125 to 530 tons, it is both robust and versatile.

Key Components

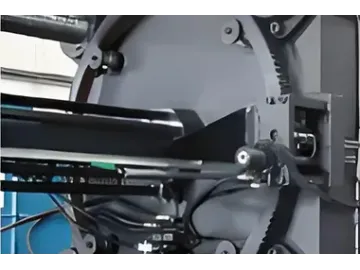

New Mold Adjustment Mechanism

The integrated design of the mold adjustment mechanism and platen ensures uniform force distribution across all four tie bars, allowing for simple and accurate clamping force adjustment.

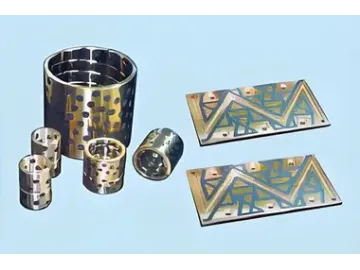

Oil-less Bearings

Oil-less bearings are employed on the moving parts of the toggle and platen, significantly reducing lubrication oil consumption and maintenance costs while minimizing oil contamination and promoting a cleaner production environment.

All-New Control System

This new networked controller supports both semi-closed and closed-loop hydraulic systems. It features a user-friendly graphical operation interface, online curve monitoring, and centralized network connectivity for data management.

New Patented Injection Sliding Structure

Our new pillar-guided structure features a shortened span to prevent barrel inclination and guide pillar deformation. Utilizing Molybdenum Disulfide-coated bushings, it offers low resistance, fast movement, permanent lubrication-free operation, and high cleanliness.

High-Rigidity Frame Structure

The robust and streamlined design has been optimized through Finite Element Analysis (FEA) for deformation and stress distribution, ensuring superior frame integrity and strength. This provides the HN series with exceptional stability.

Features
  • Initially configured for thermosetting plastics, this equipment can be swiftly converted to process thermoplastics as well, offering manufacturers a dual-purpose solution that maximizes their investment
  • The injection molding machine incorporates specially designed screws and barrels that are resistant to corrosion and wear. This ensures a longer lifespan and maintains high precision in molding operations
  • Equipped with a volumetric electric oiling system, this injection molding machine maintains optimal lubrication of moving parts, crucial for preserving machine precision and extending its operational life
  • Featuring advanced core pulling and thread-turning functions, the molding machine can handle various mold designs. This flexibility allows it to produce complex shapes and designs, meeting the rigorous demands of specialized manufacturing
