Meat Processing Equipment

Industrial meat brine injector for injecting salt water and flavor water into meat

Injection speed 10-56 cycles/min

Feeding distance 15-60mm

Brine injectors have an important role in meat processing, ensuring consistent distribution of brine, marinades, or seasoning solutions throughout meat cuts. This process enhances flavor, improves tenderness, retains moisture, and increases product weight, making it a key step in preparing high-quality meat products. We offer reliable brine injection solutions designed to meet the demands of modern food production, delivering precision and efficiency.

Applications

Brine injection machines are ideal for enhancing pork, beef, poultry, and other meats with brine, marinades, or seasoning solutions, ensuring consistent flavor, moisture retention, and improved product weight.

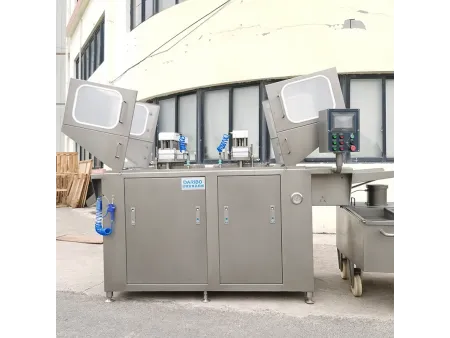

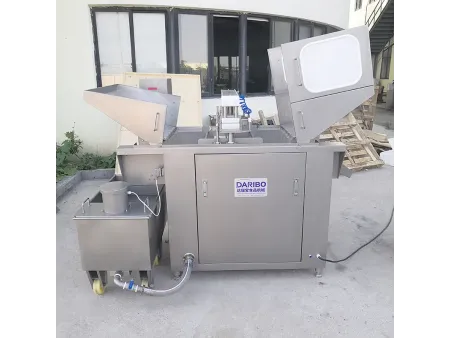

Meat Brine Injector, DRB-ZS84

Model: DRB-ZS84
Voltage: 380V, 50Hz
Power: 4kW
Injection speed: 10-56 cycles/min
Feeding distance: 15-60mm
Air pressure: 0.2-0.6Mpa
Injection needles: 84 pcs
Dimensions (L×W×H): 1500×1100×1700mm
Weight: 500kg

Meat Brine Injector, DRB-ZS168

Model: DRB-ZS168
Voltage: 380V, 50Hz
Power: 5.2kW
Injection speed: 10-47 cycles/min
Feeding distance: 15-60mm
Air pressure: 0.5-1.5Mpa
Injection needles: 168 pcs
Dimensions (L×W×H): 2890×1105×1730mm

Features

Built with imported components for dependable performance, durability, and smooth operation.
Toothed step conveyor system ensures precise and consistent movement of meat during injection.
Detachable grids provide easy cleaning and comply with international food hygiene standards.
Pneumatic spring structure ensures accurate injection for both bone-in and boneless meat.
Adjustable injection pressure, rate, step distance, and speed to suit the specific texture and size of different meat cuts.
Integrated brine mixer prevents sedimentation and filter blockages, ensuring continuous operation.
Dual filtration system and high-pressure air needle cleaner prevent clogging and maintain solution cleanliness.
