HN-BMC Series
BMC Injection Molding Machine
Request a Quote
Description
150-600ton plastic injection molding machine for bulk molding compounds
Specialized in producing high-strength plastic components, this molding equipment enhances operational efficiency through its innovative design. It uses dual lower molds that alternate during operation, speeding up the injection process. A thick insulation plate ensures precise temperature control, while a pneumatic safety rod and a specialized network injection system, responding in just 1 ms, provide stability and safety during operations. The system can handle mold forces from 150 to 600 tons.
- Injection stroke:
245mm-280mm
- Injection capacity:
1331g-2285g
- Injection pressure:
15125kgf/cm²-1675kgf/cm²
- Injection rate:
256g/s-568g/s
Applications
Ideal for manufacturing durable plastic components for automobiles, electronic devices, household appliances, and communication equipment, this plastic molding equipment proves versatile across various industrial uses.

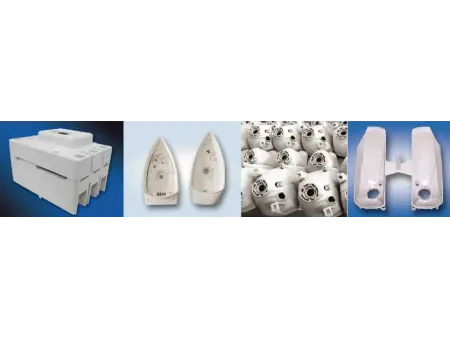

Samples of Plastic Injection Molded Parts
Key Components

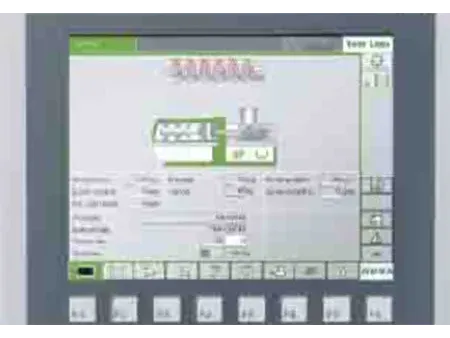

Advanced control system
Equipped with a dedicated network system for injection molding machines, this component offers an intuitive user interface, rapid response times, and high precision, enhancing usability and adaptability.

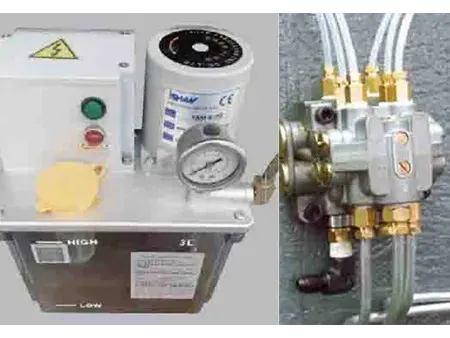

Automated lubrication system
A cyclic electric oiling system evenly distributes oil, optimizing lubrication efficiency and extending the lifespan of moving parts.

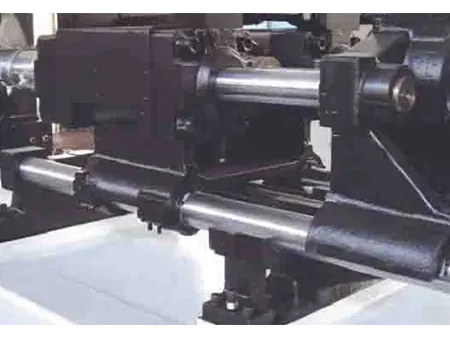

Innovative guide pillar structure
This new guide pillar design reduces the distance between supports, preventing material tube tilt and guide pillar sagging. It uses molybdenum disulfide-coated sleeves to minimize resistance and maximize movement speed while maintaining cleanliness.

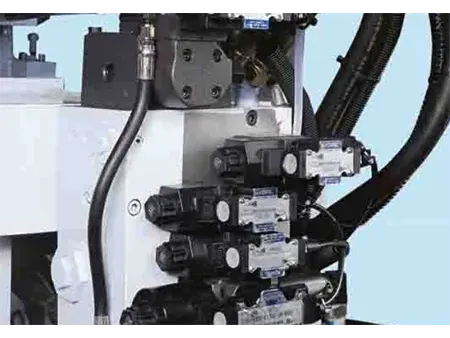

Digital back pressure device
Back pressure settings can be adjusted directly from the electronic control screen, simplifying operations.
Features
- Includes a hydraulic cylinder feeding device that ensures stable and consistent material input, crucial for uniform product quality
- An optional ACC accumulator can provide a quick energy boost for faster injection cycles, ideal for high-demand scenarios
- Temperature control is more precise thanks to an insulated pad on the carriage, which is critical for achieving optimal product quality
- A filling platform simplifies adding plastics, particularly useful in models (BMC-250 and above) designed for larger scale operations
Specifications
Injection Unit
- Injection stroke: 245mm-280mm
- Injection capacity: 1331g-2285g
- Injection pressure: 15125kgf/cm²-1675kgf/cm²
- Injection rate: 256g/s-568g/s
Clamping Unit
- Clamping force: 150tonf-600tonf
- Clamping stroke: 460mm-900mm
- Ejector stroke: 110mm-220mm
Electrics
- Pump motor power: 36.7kW-73.4kW
- Drive system: hydraulic
