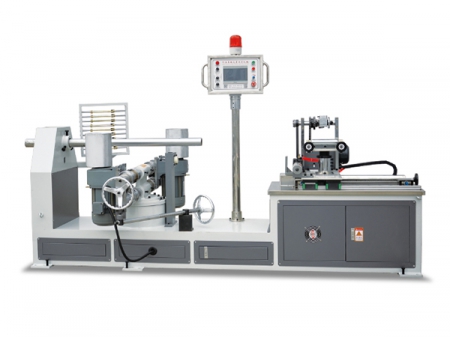

2 Head Paper Tube Making Machine, KS-60

2 Head Paper Tube Making Machine, KS-60
2 Head Paper Tube Making Machine, KS-60
2 Head Paper Tube Making Machine, KS-60
2 Head Paper Tube Making Machine, KS-60
Request a Quote
Main parameters:
Paper layer 2-7 layers
Inner core diameter 15-60 mm
Thickness 1-5 mm
Winding speed 0-40 m/min
Cut-to-length mode Numerical control
Winding head Two heads
Cutting method CNC automatic cutting by circular knife
Gluing method Double-sided gluing
Control method Numerical control
Input voltage 380V/220V
Number of operators 1-3
Total weight 1804 kg
Machine size (L*W*H) 3100*1500mm*1800 mm
Area size (L*W) 11000mm*5000 mm

Characteristics:
1.Automatic cut, fall tube and automatic supply glue
2.when cutting tube, automatic change speed, and reset, disc cutter automatic cut, cut side even
3.Inverter adjust speed control can save 30% electrical than popular electromagnetic variable -speed motor
4.Infrared control, paper tube length accurate

Configurations
Main motor power 2*3.7 kW
PLC controller Specially equipped
HMI Specially equipped
Frequency converter ENERGY
Electrical components Omron/Chint
Signal element Omron/Pefun
Button/emergency stop Siemens
Pneumatic Components Airtac/tianao/detai/chengdi
