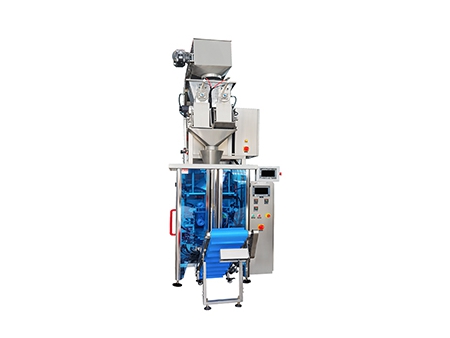

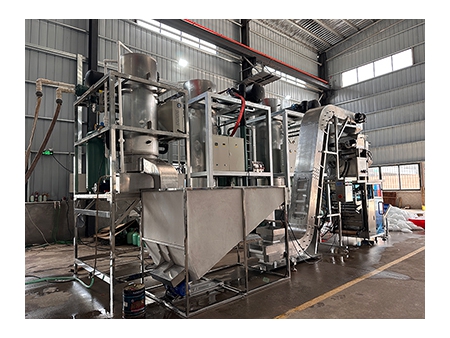

Ice Packaging Machine with 2 Head Linear Weigher, SK-L520
Request a Quote
Vertical form-fill-seal ice packaging
- Weight range: 1-3kg/bag
- Packaging speed: approx. 25bags per minute (line speed, depending on weight of each bag)
- Bag type: back seal bag
- Bag material: composite film, PE film
Applicable Products
- Crushed ice
- Square cube ice
- Flake ice
- Tube ice
Packaged Products

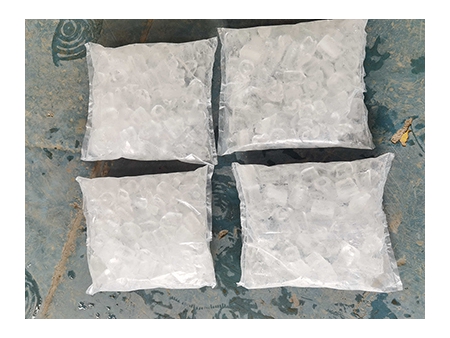

- 1kg ice packaging

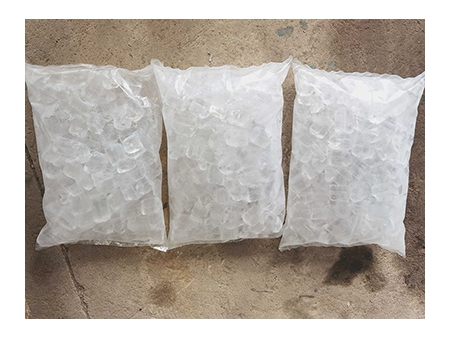

- 2kg ice packaging

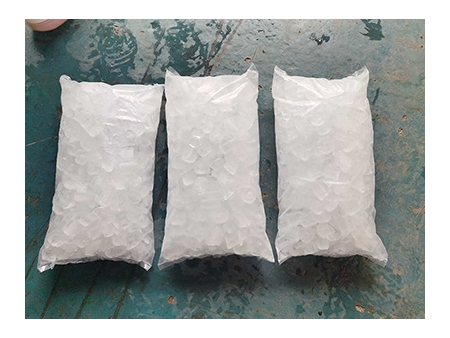

- 3kg tube ice packaging
Technical Parameters of Ice Packaging Machine (Main Machine)
| Model | SK-L520 |
| Weight range | 1-3kg |
| Bag width range | 100-250mm |
| Bag length range | 80-350mm |
| Packaging speed | 15-65 bags/min (depending on product and packaging weight) |
| Bag material | Composite film, PE film |
| Bag type | Back seal bag |
| Dimensions (L*W*H) | 1430*1200*1700mm |
| Machine weight | 650kg |
| Power supply | 220V 50/60HZ, 3kW |
| Air consumption | 0.65MPa, 2.5m³/min |
Features
- The fully automated process, which includes bag forming, filling, sealing, and cutting, is completed in a single streamlined operation.
- The SOONKPACK attachments prevent bags from sticking to the forming equipment during film transport, ensuring a smoother packaging process for ice blocks and granules.
- The innovative sealing technology enhances the appearance and durability of the package seals.
- Our custom-designed dual-head screw weighers guarantee precise measurement and consistent ice packaging.
- We offer flexible configuration options, including dual-head or triple-head weighers, to meet the specific requirements of our clients.
- SOONK has nearly a thousand ice packaging clients and is therefore well-positioned to understand their challenges and needs. We continuously upgrade and improve our equipment to ensure greater functionality and adaptability.

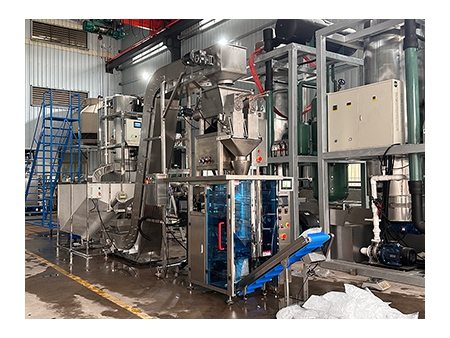

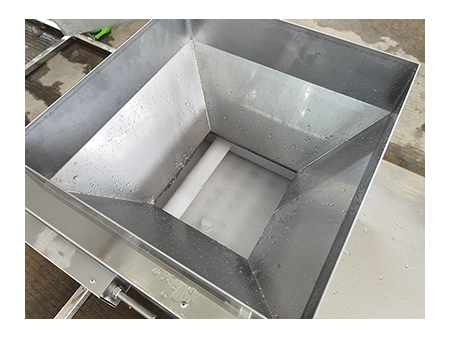

- Feed hopper
- 2 head linear weigher
- Transverse sealing unit
- Longitudinal sealing unit
- Ice storage tank outlet above the feed hopper
- Ice storage tank
- Date coding
- Outfeed conveyor for packaged products
If you want to know more about this VFFS machine, don't hesitate to contact us!
