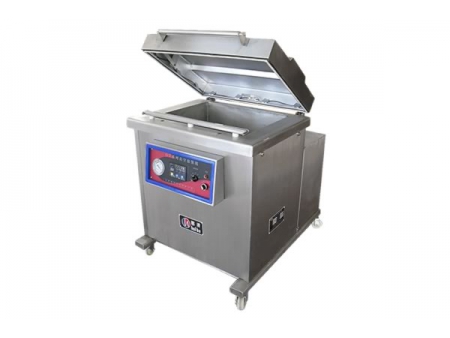

Single Chamber Vacuum Packaging Machine
Request a Quote
Packing Sample Pictures
The single chamber vacuum packaging machine is suitable for using composite films to pack products, such as food, medicine, aquatic products, chemical materials, hardware, electronic components and other types of solid, powder, paste and liquid products. The vacuum packaging method effectively avoids food spoilage and material deterioration caused by oxidation and bacteria reproduction and thus prolongs the storage time.
Technical Parameters of Vacuum Packaging Machine with Single Chamber| Model | DZ-400 | DZ-500 | DZ-600 |
| Power supply | 220V 50HZ | 220V 50HZ | 380V 50HZ |
| Power | 1.5 kW | 1.7 kW | 2 kW |
| Heat-seal power | 0.6 kW | 0.8 kW | 1 kW |
| Packaging efficiency | 1-3 times/min | 1-3 times/min | 1-3 times/min |
| Min. absolute pressure | 0.1MPa | 0.1MPa | 0.1MPa |
| Length of heat sealing bar | 400mm | 500mm | 600mm |
| Vacuum pump capacity | 20m3/h | 20m3/h | 40m3/h |
| Vacuum chamber type | Sunken type | Sunken type | Sunken type |
| Machine dimensions | 490×550×1000mm | 580×650×1100mm | 690×760×1100mm |
| Net weight | 75kg | 100kg | 170kg |
| | | |
