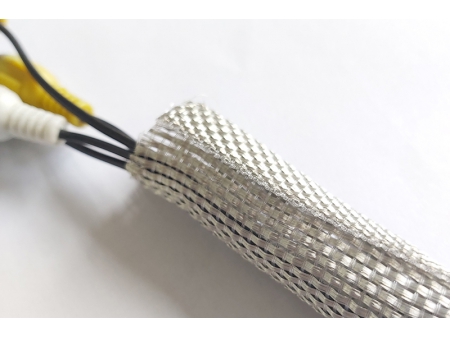

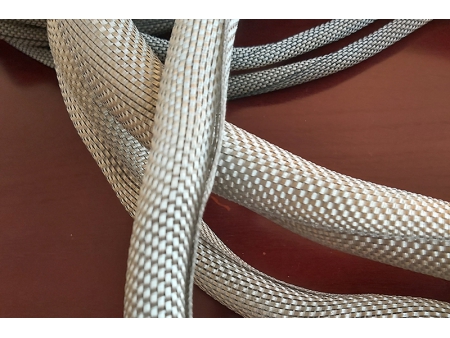

EMI Shielding Self-Closing Wrap

EMI Shielding Self-Closing Wrap
EMI Shielding Self-Closing Wrap
EMI Shielding Self-Closing Wrap
EMI Shielding Self-Closing Wrap
Request a Quote

Material: Tinned copper wire, PEEK or PPS
Working temperature: -40°C ~ 150°C
Melting point: 255° ± 10°C
Color: silver
Characteristics: It has excellent shielding and open structure, which is easy to install and remove, reusable.

EMI shielding self-closing wrap is used for EMI shielding and EMI reduction. This is achieved with its tinned copper & PPS or PEEK construction. Because of its special structure, it can be easily installed and removed.

Application
Shielding EMI,RFI,EMF, etc., the EMI shielding self-closing wrap is mainly used in electric control cabinet, especially for railway control cabinet. The split design is convenience for maintenance and overhaul.

Optional specification
Model Inner Diameter(mm) Maximum bundle range(mm) Overlap Package
SP-005 5 6 50% 100m/ reel
SP-008 8 9 100m/ reel
SP-010 10 11 100m/ reel
SP-013 13 14 50m/ reel
SP-016 16 17 50m/ reel
SP-019 19 20 25m/ reel
SP-025 25 27 25m/ reel
SP-030 30 32 25m/ reel
SP-038 38 40 25m/ reel
SP-050 50 52 25m/ reel
Related
EMI Shielding Sleeving, Self closing EMI Shielding Sleeving, Tinned Copper EMI Shielding Sleeving
