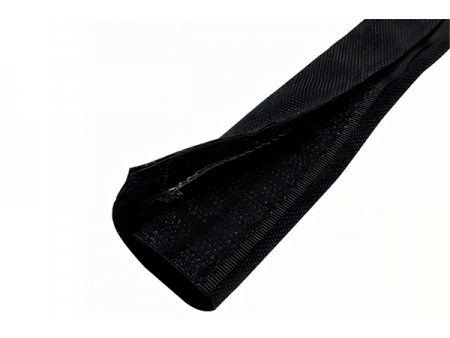

Hook & Loop EMI Shielding Wrap
Request a Quote
CEMI5651
- Composition: Hook & loop fastener copper mesh metal strip textile fabric
- Material: Polyester tinned copper
- Operating Temperature: -50°C to 150°C
- Color: Black (outer surface)
- Shielding Effectiveness: 60 dB within 30 MHz–3 GHz (tested based on GB/T 30142-2013)
- Cutting Method: Cold cutting
- Packaging: Paper reel
Now
CEMI5651 series is an EMI shielding wrap composed of hook-and-loop fasteners, copper mesh, metal strips, and textile fabric. It provides effective electromagnetic interference (EMI) shielding. The side-opening hook-and-loop structure facilitates easy installation and maintenance.
Applications
This shielding wrap is primarily used for wire harness protection in rail transit, high-speed railway, and aviation industries, where frequent installation and maintenance are required.
Certifications
Parameters
| Model | Inner Diameter (mm) | Webbing Width (mm) | Hook-and-Loop Width (mm) | Packaging Length (m/reel) | Item Code |
|---|---|---|---|---|---|
| 16 | 90±5 | 20±2 | 25 | MP-016 | |
| 20 | 100±5 | 20±2 | 25 | MP-020 | |
| 25 | 110±5 | 20±2 | 25 | MP-025 | |
| 30 | 135±8 | 20±2 | 25 | MP-030 | |
| 40 | 160±5 | 20±2 | 25 | MP-040 | |
| 50 | 190±5 | 20±2 | 25 | MP-050 |
Available in custom cut lengths.
Custom sizes available upon request.
Custom sizes available upon request.
For detailed information, please download the product datasheet.
