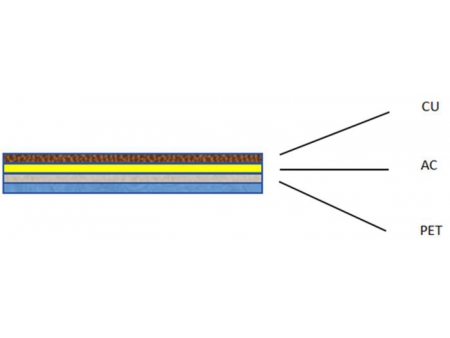

Polyester film laminated copper foil with PUR hot melt adhesive

  • Total Thickness: (From 10μm to over 100μm) ±3μm
  • PET Layer Thickness: (≥1.6μm) Copper Layer (≥4μm)
  • Tensile Strength: ≥30Mpa
  • Width: 0.5mm to 990mm
  • Elongation: ≥30% Min
  • Packaging: rolls(D30), sheets, 76mm removable rolls, converted cone packaging

Copper foil offers conductivity and electromagnetic insulation. PET film provides electrical insulation and high mechanical strength. Copper foil is corrosion-resistant, radiation-resistant, weldable, and offers higher conductivity than aluminum foil. We also offer adhesive-free foil film laminates tailored to your needs.

Features
  • PET film protects copper foil from damage and oxidation
  • Copper foil provides electrical shielding, while PET film offers insulation
Applications
  • EMI shielding
  • Data transmission cable
