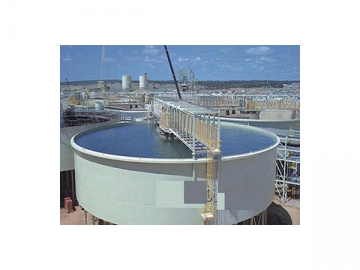

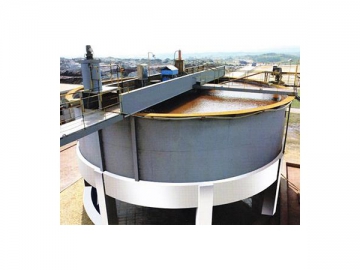

High Efficiency Sludge Thickener
Request a Quote
Application
High efficiency sludge thickener is properly used to dewater ore concentrate and tailings of ore treatment plant, which can increase the pulp density from 20-30% to 40-70%.
Applicable materials
Copper ore, magnetite, hematite, lignite, gold ore, iron ore and so on.
Type | Inside diameter of tank(mm) | Tank height (mm) | Sediment area(m2) | Rake arm rotation speed (r/min) | Rake arm lifting height (mm) | Driving motor type | Driving motor power (kw) | Lifting motor type | Lifting motor power (kw) | Weight of steel tank(kg) | Weight (kg) |
GX-3.6 | 3600 | 1700 | 10.2 | 1.1 | 200 | Y100L-6 | 1.5 | Y100L-6 | 1.5 | 2829 | 6650 |
GX-5.18 | 5182 | 2134 | 21 | 0.4 | 300 | Y132S-6 | 3 | PZ0.8AB | 0.8 | 5342 | 10460 |
GX-6 | 6000 | 2500 | 28.3 | 0.8 | 300 | Y132M1-6 | 4 | Y132S-8 | 2.2 | 6506 | 10573 |
GX-7.5 | 7500 | 2800 | 44.1 | 0.427 | 300 | Y132M2-6 | 5.5 | Y132S-8 | 2.2 | 10258 | 17320 |
GX-9 | 9000 | 2800 | 63.6 | 0.427 | 300 | Y132M2-6 | 5.5 | Y132S-8 | 2.2 | 15980 | 23680 |
GX-12 | 12000 | 3600 | 110 | 0.35 | 300 | Y132M-4 | 7.5 | Y100L1-4 | 2.2 | 25589 | 42756 |
GX-15 | 15000 | 4000 | 177 | 0.15 | 300 | YCT200-4B | 7.5 | Y112M-6 | 2.2 | 36050 | 59000 |
GX-18 | 18000 | 4400 | 254 | 0.13 | 400 | YCT200-4B | 7.5 | YTC752A-44 | 5.5 | 52485 | 73296 |
GX-20 | 20000 | 4400 | 314 | 0.13 | 400 | YCT200-4B | 7.5 | YTC752A-44 | 5.5 | 59365 | 76020 |
- High efficiency sludge thickening system adds flocculant which can increase the diameter of sedimentary solid particle in order to accelerate sedimentation rate.
- It adds deaerating tank in order to avoid solid particles attaching to bubbles.
- The material thickening equipment is equipped a receiving barrel which can receive materials so that the feeding ore slurry will fall evenly and steadily and it can avoid splash phenomenon.
- We can provide flocculant addition automation system additionally.
