Condenser Header Pipe Grooving Machine

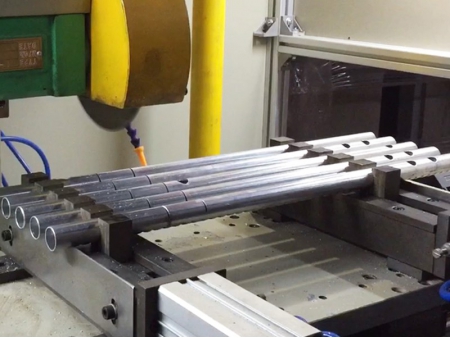

This condenser header pipe grooving machine is specially designed for slotting grooves on header pipes.
This machine is servo motor feeding, PLC control, touch screen operation, full automatic (except for manual clamping and unloading). Groove numbers and distance between every groove can be preset.
The machine can cut grooves on max. 5 pipes simultaneously.
Technical Data
- Suitable header pipe diametercustomized
- Suitable max. header pipe length750mm
- Max. groove numbers on one pipeMax. 10 pieces
- Min. distance between pipe end and first groove20mm
- Groove position tolerance /-0.5mm
- Production speed5s per groove
- Max. Header pipe quantity to be grooved per cycle5
- Cutting saw blade speed3500rpm
- Air source0.4~0.68MPa
- Total motor power1.5kW
