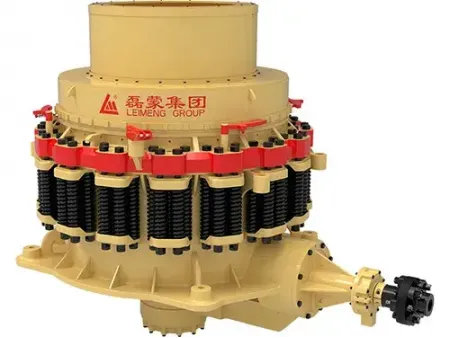

PYB Cone Crusher

Request a Quote

View All: http://janeoocn.com/13-11-cone-crusher.html

Features
1. The PYB cone crusher is distinguished by reasonable structure, reliable performance, stable operation, and high cost effectiveness.
2. In addition to the outstanding size reduction ratio, the construction machinery is very popular because of the high production capacity and low wear rate.
3. Thanks to the high-strength cast steel rack, our cone breaker is sturdy and durable for use.
4. The reliable sealing of the cone crusher effectively extends the change interval of the lubricating oil and the lifespan of the parts.
5. Hydraulically controlled, the cleaning of the crushing chamber is quite convenient and easy.
6. The hydraulic control system is employed for fast and labor-saving machine adjustment.
7. Combined crushing chamber results in high rate of finished product in cubic shape.
8. Customer can choose the chamber based on actual demand, slim, medium or wide type.

Applications
The cone crusher is suitable for crushing medium-hard and ultra-hard material, for example, granite, basalt, quartzite, iron ore, and cobblestone. The energy-saving ore crusher is a useful tool for mining industry, building material industry, metallurgical industry, gravel processing industry, and road and bridge construction industry.

Technical Parameters of Cone Crusher

Model		Dia. of Crushing Device (mm)	Type of Crushing Chamber	Inlet Size (mm)	Adjustable Size of Outlet (mm)	Handling Capacity (t/h)	Speed of Main Shaft (r/min)	Power (kW)	Weight (t)	Overall Dimensions (L x W x H) (mm)
PYB	900	900	Standard	115	15-50	50-90	333	55	11.2	2692 x 1640 x 2350
PYZ			Medium	60	5-20	20-65			11.2
PYD			Shorthead	50	3-13	15-50			11.3
PYB	1200	1200	Standard	145	20-50	110-168	300	110	24.7	2790 x 1878 x 2844
PYZ			Medium	100	8-25	42-135			25
PYD			Shorthead	50	3-15	18-105			25.3
PYB	1750	1750	Standard	215	25-60	280-480	245	155	50.3	3910 x 2894 x 3809
PYZ			Medium	185	10-30	115-320			50.3
PYD			Shorthead	85	5-13	75-230			50.2
PYB	2200	2200	Standard	300	30-60	590-1000	220	280	83	4622 x 3302 x 4470
PYZ			Medium	230	10-30	200-580			83
PYD			Shorthead	100	5-15	120-340			83
