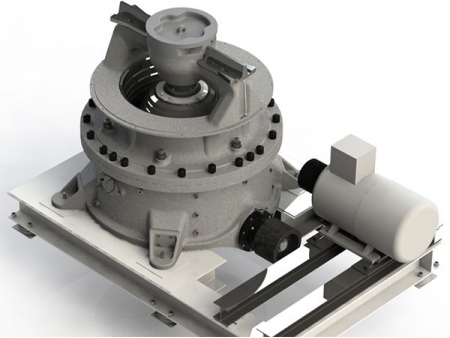

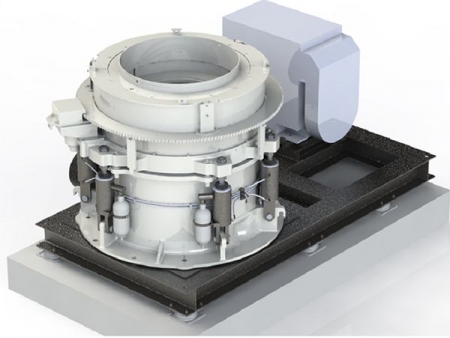

Cone Crusher

Request a Quote

View All: http://heavy-plant.com/1-1-10-cone-crusher.html

Our cone crushers are designed to tackle various crushing tasks, from mid-size to fine crushing, making them perfect for mining, smelting, construction, highways, railways, water conservancy, and chemicals. At Sinomaly, we pride ourselves on being able to create crushers of various sizes and specifications to meet your specific needs. What sets our cone crushers apart is their high productivity, fine quality and shape of the crushed materials, compact size, lightweight, easy maintenance, and straightforward operation. These features ensure our crushers perform at top efficiency and simplify material crushing processes, making them an ideal choice for projects demanding precise and reliable crushing.

Features

Our cone crushers are designed for both mid-size and fine crushing of hard materials, making them suitable for a wide range of applications in different industries.
We offer cone crushers in three variants: standard for medium crushing, short-head for fine crushing, and medium type for intermediate crushing, ensuring a perfect fit for various crushing needs.
Ideal for businesses that have varied requirements for crushing processes; for smaller volumes, jaw or roll crushers might be enough, but for larger operations, our cone crushers provide the necessary efficiency and power, making them a superior choice for extensive crushing tasks.

Technical Data

Model	Chamber	Feed Size (mm)	Min. Discharge Opening (mm)	Power (kW)
HYP200	C	185	19	160
	M	125	17
	F	95	13
	EF	76	10
HYP300	EC	233	25	250
	C	211	19
	M	150	17
	F	107	13
	EF	77	10
HYP400	EC	299	30	315
	C	252	25
	M	198	20
	F	111	14
	EF	92	10
HYP500	EC	335	30	400
	C	286	25
	M	204	20
	F1	133	16
	EF	95	13
HYP800	EC	353	32	630
	C	297	32
	M	267	25
	F	219	16
	EF	155	13

Production Capacity

Discharge Opening (mm)
Model		10	13	16	19	22	25	32	38	45	51
HYP200	t/h	90-120	120-150	140-180	150-190	160-200	170-220	190-235	210-250
HYP300	t/h	115-140	150-185	180-220	200-240	220-260	230-280	250-320	300-380	350-440
HYP400	t/h	140-175	185-230	225-280	255-320	275-345	295-370	325-430	360-490	410-560	465-630
HYP500	t/h	175-220	230-290	280-350	320-400	345-430	365-455	405-535	445-605	510-700	580-790
HYP800	t/h	260-335	325-425	385-500	435-545	470-600	495-730	545-800	600-950	600-1050	785-1200
