Air-Cooled Vibration Test System

Request a Quote

Website: http://testchamber-en.com/14-1-air-cooled-vibration-test-system.html

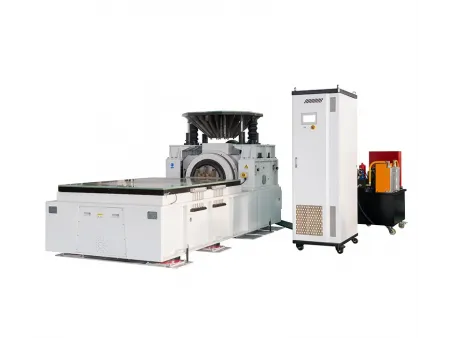

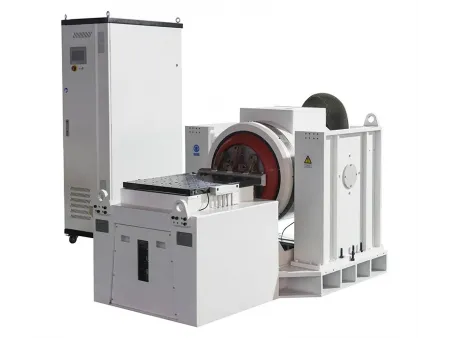

Electrodynamic vibration shaker for testing the behaviour and reliability of products under simulated vibration environments

Our air-cooled vibration systems are available with excitation forces ranging from 1 kN to 70 kN. They operate across a wide frequency spectrum and are engineered to maintain stable, repeatable performance even during extended test cycles. Thanks to their intuitive controls and high reliability, these shakers are frequently used for testing electronic components, automotive parts, and medical devices of small to medium size.

Standard Compliance

Our air-cooled vibration test systems are manufactured in compliance with JJG948/2018, JJG1000-2005, GB/T 13310-2007.
Performance specifications align with ISO 5344, IEC 60068-2-6, MIL-STD-810 requirements.
Configurations and features can be customized to match specific test needs.

Optional Configurations

Technical Parameters

System Model	TS1-150	TS1.5-150	TS2-150	TS3-150	TS6-230	TS10-240	TS10D-240	TS20-320	TS20-445	TS20LS3-340	TS30-370
Sine/Random (kN)	1	1.5	2	3	6	10	10	20	20	20	30
Shock force (kN)	2	3	4	6	12	20	20	40/60	40/60	40/60	60/90
Frequency range (Hz)	5-4,500	5-4,500	5-4,500	5-4,000	5-3,500	5-3,000	5-4,500	5-3,000	5-2,800	5-3,000	5-2,800
Max. acceleration (m/s²)	500	750	1,000	1,000	1,000	1,000	1,000	1,000	700	800	1,000
Max. velocity (m/s)	2	2	2	2	1.8	1.8	1.8	2	2	2	2
Max. displacement (mm)	25	25	25	25	51	51	51	51	51	76	51
Max. load (kg)	70	70	70	120	300	300	300	300	300	300	500
Armature mass (kg)	2	2	2	3	6	10	10	20	28	25	30
Armature diameter (mm)	150	150	150	150	230	240	240	320	445	340	370
Body suspension natural frequency (Hz)	3	3	3	3	3	2.5	2.5	2.5	2.5	2.5	2.5
Armature inserts (standard)	13×M8	13×M8	13×M8	13×M8	17×M8	17×M10	17×M10	17×M10	17×M10	21×M10	17×M10
Stray flux density	﹤3 mT (30 Gs)	﹤ 3 mT (30 Gs)	﹤3 mT (30 Gs)	﹤ 3 mT (30 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)	﹤ 4 mT (40 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)
Fundamental resonance frequency (Hz)	3,400 (nom.) ±5%	3,400 (nom.) ±5%	3,400 (nom.) ±5%	2,900 (nom.) ±5%	2,800 (nom.) ±5%	2,400 (nom.) ±5%	3,200 (nom.) ±5%	2,600 (nom.) ±5%	2,600 (nom.) ±5%	2,600 (nom.) ±5%	2,400 (nom.) ±5%
Weight (kg)	420	420	420	510	615	930	950	1750	1750	1750	2550
Dimensions (mm)	745×560×658	745×560×658	745×560×658	805×560×663	875×560×727	966×640×786	1016×640×843	1136×710×1052	1136×710×1052	1136×710×1066	1230×790×1155
Power Amplifier Model	PWA1	PWA1.5	PWA2	PWA3	PWA6	PWA10	PWA10	PWA20	PWA20	PWA20	PWA30
Power (kVA)	1	1.5	2	3	6	10	10	20	20	20	30
Max. output voltage (V)	50	60	60	60	90	120	120	120	120	120	120
Max. output current (A)	20	25	35	50	70	110	110	230	230	230	300
Power requirement (kVA)	4	4.5	5.5	6.5	16	21	21	44	44	44	54
Weight (kg)	285	285	285	285	320	320	320	330	330	330	585
Dimensions (mm)	600×980×1150	600×980×1150	600×980×1150	600×980×1150	600×980×1150	600×980×1150	600×980×1150	600×910×1800	z	600×910×1800	600×910×1800
Blower Model	CD200	CD200	CD200	CD200	CD1000	CD1000	CD1000	CD3000	CD3000	CD3000	CD3000
Cooling method	Air cooling	Air cooling	Air cooling	Air cooling	Air cooling	Air cooling	Air cooling	Air cooling	Air cooling	Air cooling	Air cooling
Power (kW)	0.75	0.75	0.75	0.75	4	4	4	7.5	7.5	7.5	7.5
Air flow (m³/s)	0.1	0.1	0.1	0.1	0.33	0.33	0.33	0.46	0.46	0.46	0.46
Air pressure (kPa)	1	1	1	1	3.5	3.5	3.5	8.8	8.8	8.8	8.8
Weight (kg)	25	25	25	25	120	120	120	235	235	235	235
Dimensions (mm)	496×382×1005	496×382×1005	496×382×1005	496×382×1005	792×557×1260	792×557×1260	792×557×1260	915×721×1445	915×721×1445	915×721×1445	915×721×1445

System Model	TS30LS4-445	TS40-370	TS40LS4-445	TS50-445	TS50LS3-445	TS50LS4-445	TS60-445	TS60LS3-445	TS60LS4-445	TS65LS3-480	TS70LS3-550
Sine/Random (kN)	30	40	40	50	50	50	60	60	60	65	70
Shock force (kN)	60/90	80/120	80/120	100/150	100/150	100/150	120/180	120/180	120/180	130/195	140/210
Frequency range (Hz)	5-2,600	5-2,800	5-2,600	5-2,600	5-2,600	5-2,500	5-2,600	5-2,600	5-2,500	5-2,700	5-2,500
Max. acceleration (m/s²)	750	1,300	900	1,000	900	850	1,000	1,000	1,000	920	850
Max. velocity (m/s)	1.8	2	1.8	2	2	2	2	2	2	2	2
Max. displacement (mm)	100	51	100	51	76	100	51	76	100	76	76
Max. load (kg)	500	500	500	800	800	800	800	800	800	1,000	1,000
Armature mass (kg)	40	31	45	50	55	59	60	55	60	70	82
Armature diameter (mm)	445	370	445	445	445	445	445	445	445	480	550
Body suspension natural frequency (Hz)	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5
Armature inserts (standard)	17×M10	17×M10	17×M10	17×M12	17×M12	17×M12	17×M12	17×M12	17×M12	17×M12	33×M12
Stray flux density	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)
Fundamental resonance frequency (Hz)	2,400 (nom.) ±5%	2,400 (nom.) ±5%	2,400 (nom.) ±5%	2,400 (nom.) ±5%	2,300 (nom.) ±5%	2200(nom.) ±5%	2,400 (nom.) ±5%	2,400 (nom.) ±5%	2,200(nom.) ±5%	2,300 (nom.) ±5%	2,300 (nom.) ±5%
Weight (kg)	2550	2550	2550	4550	4550	4550	4550	4550	4550	4550	7300
Dimensions (mm)	1230×790×1231	1230×790×1155	1230×790×1231	1636×1104×1274	1636×1104×1285	1636×1104×1340	1636×1104×1274	1636×1104×1285	1636×1104×1340	1636×1104×1276	1636×1104×1276
Power Amplifier Model	PWA30	PWA40	PWA40	PWA50	PWA50	PWA50	PWA60	PWA60	PWA60	PWA70	PWA70
Power (kVA)	30	40	40	50	50	50	60	60	60	70	70
Max. output voltage (V)	120	120	120	120	120	120	120	120	120	120	120
Max. output current (A)	300	400	400	500	500	500	550	550	550	580	580
Power requirement (kVA)	54	73	73	82	82	82	95	95	95	108	110
Weight (kg)	585	700	700	780	780	780	850	850	850	900	900
Dimensions (mm)	600×910×1800	600×1000×2150	600×1000×2150	600×1000×2150	600×1000×2150	600×1000×2150	600×1000×2150	600×1000×2150	600×1000×2150	600×1000×2150	600×1000×2150
Blower Model	CD3000	CD5000	CD5000	CD5000	CD5000	CD5000	CD7000	CD7000	CD7000	CD7000	CD7000
Cooling method	Air cooling	Air cooling	Air cooling	Air cooling	Air cooling	Air cooling	Air cooling	Air cooling	Air cooling	Air cooling	Air cooling
Power (kW)	7.5	15	15	15	15	15	22	22	22	22	22
Air flow (m³/s)	0.46	1.1	1.1	1.1	1.1	1.1	1.6	1.6	1.6	1.6	1.6
Air pressure (kPa)	8.8	7.7	7.7	7.7	7.7	7.7	7.5	7.5	7.5	7.5	7.5
Weight (kg)	235	285	285	285	285	285	390	390	390	390	390
Dimensions (mm)	915×721×1445	1163×874×1882	1163×874×1882	1163×874×1882	1163×874×1882	1163×874×1882	1163×959×1882	1163×959×1882	1163×959×1882	1163×959×1882	1163×959×1882
