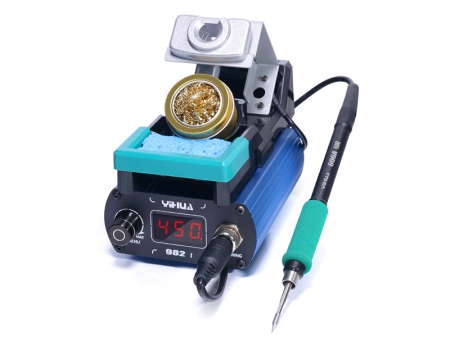

YIHUA 982-I is engineered for precision soldering, offering excellent thermal performance with its fast-heating soldering tip and advanced PID control system to maintain consistent temperature stability.

• Compatible soldering handpieces: Equipped with both C210 and C245-compatible soldering handpieces, this station supports a wide range of applications, from precision micro-soldering to standard component work. For delicate, high-precision tasks we offer the C210 and the C245 for general-purpose soldering. Compatible tip models include C210/C245-I, -K, and -SI. In addition, the heating element is easy to install and remove for hassle-free maintenance.
• Rapid heat-up and advanced temperature control system: Heats up to 300°C in just 7 seconds, with a temperature range of 90°C to 450°C. Digital temperature calibration ensures accuracy by compensating for changes caused by environmental factors or part replacements, such as new heating elements or soldering irons.
• Hotkey access: The soldering station supports up to 5 essential functions, all accessible via a single hotkey for streamlined operation and enhanced efficiency.
• Operation in both Celsius and Fahrenheit: Easily toggle between °C and °F to accommodate various market preferences and needs.
• Three programmable temperature presets: Save and quickly access preset temperatures across three channels (CH1/CH2/CH3) for different soldering tasks. The station easily switches between settings to match your application’s specific requirements.
• Adjustable sleep mode: The station supports configurable sleep mode timing (0/5/10/30 minutes). The equipment instantly reactivates when the soldering iron is lifted, promoting energy conservation, reducing wear on the heating element, and extending overall tool life.
• Automatic power-off settings: If the iron remains in sleep mode for approximately 30 minutes without being picked up, the station will automatically shut down. This feature prevents accidental power waste and improves operational safety.
• Built-in buzzer alert: A convenient buzzer notifies the user of status changes or alerts, improving workflow awareness.

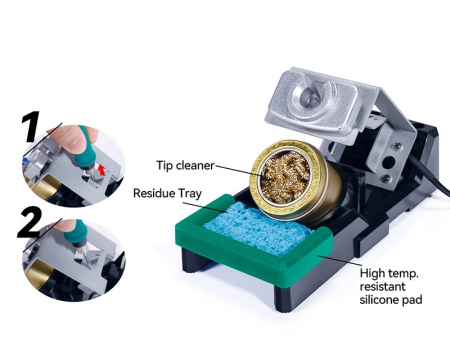

• Multi-function iron holder: The integrated iron holder includes a brass wool tip cleaner, a heat-resistant cleaning sponge, slots for tip storage and changeover.

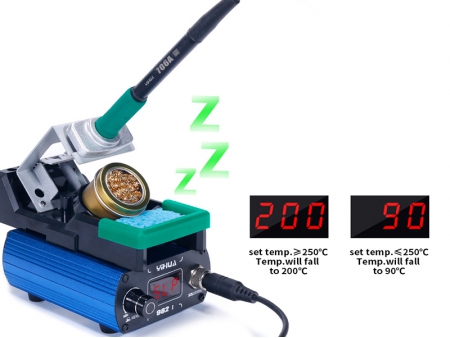

Sleep Mode
When the soldering iron is placed back into the holder, it automatically enters sleep mode.

Replaceable Soldering Iron Tips

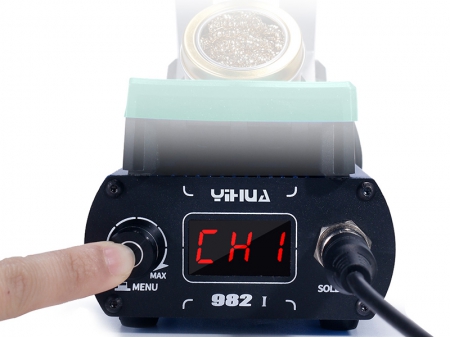

Memory Channels CH1/CH2/CH3
Ensure quick access to the temperature presets

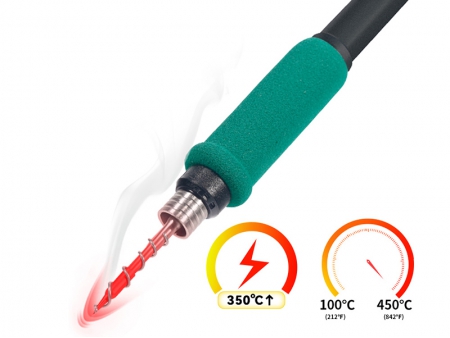

Rapid Heating

Automatic Power-Off Settings
If the iron remains in sleep mode for approximately 30 minutes without being picked up, the station will automatically shut down.
