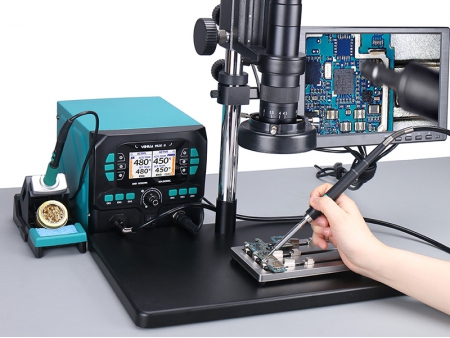

• Soldering kit: Combines a precision hot air soldering station and a C210 precision soldering iron that can be used simultaneously. Perfect for handling multiple tasks without tool changes, ideal for various soldering and rework needs, especially SMD electronics and micro soldering.
• Precision hot air rework station: Adjustable temperature range from 212°F to 896°F with rapid heat-up thanks to the integrated heating element. Comes with eight interchangeable hot air nozzles to suit different precision rework applications.
• Accurate hot air delivery: The hot air pencil focuses heat delivery within millimeters for precise control, ideal for delicate tasks like Type-C connector soldering. Unlike traditional hot air guns, it targets a small area to prevent damage to nearby components.

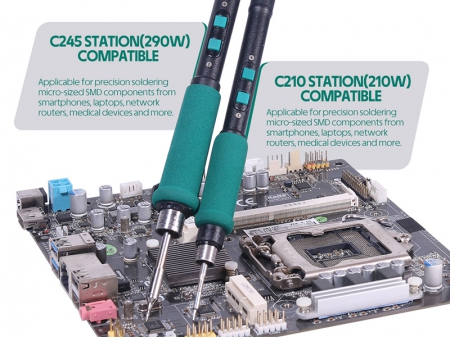

• C210 precision soldering iron kit: Adjustable temperature from 90°C to 450°C (194°F to 842°F), with a slim tip designed for small SMD components. Enhances visibility and precision under a microscope. Rapid heating reaches soldering temperature in just 2 seconds, with stable PID temperature control.
• Dynamic LCD display: Separates LCD sections for the hot air station and soldering iron show real-time temperature, power, and status indicators for easy monitoring and adjustment.
• Quick-access control: Built-in buttons on the soldering iron allow fast temperature adjustments, while the hot air pencil features a standby/cool air mode button for easy switching.
• Multi-functional soldering iron holder: Includes tip storage slots, brass wool tip cleaner, cleaning sponge, and metallic protector, designed for easy use and maintenance.
• Preset channels and low-wear mode: Three preset temperature channels allow quick access to frequently used settings. The soldering iron and hot air pencil enter low-wear mode when placed in the holder, reducing wear and extending the heating element’s lifespan.
• Hot air pencil nozzles: Comes with W575 hot air nozzles in sizes 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, and 4.0 mm. Standard package includes 3 nozzles.

Correct nozzle installation for model 992D II 4

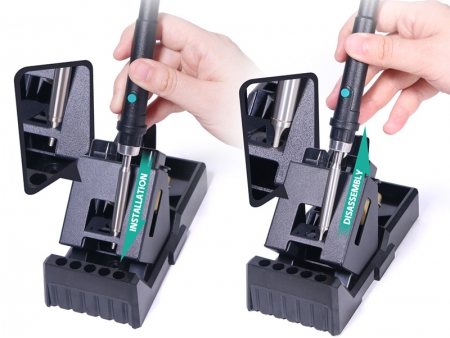

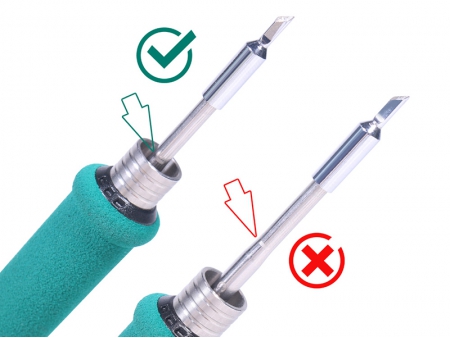

Proper Installation of the soldering iron tip heating element for 992D II 4

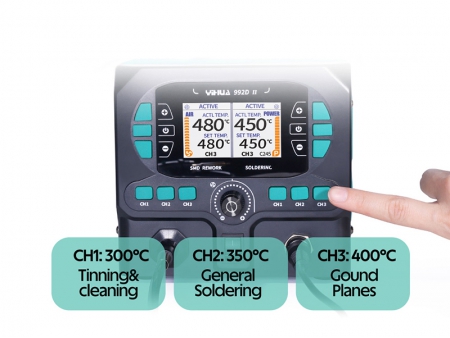

Three Preset Channels
The temperature settings shown are for reference only. Users can customize each channel based on specific work requirements.

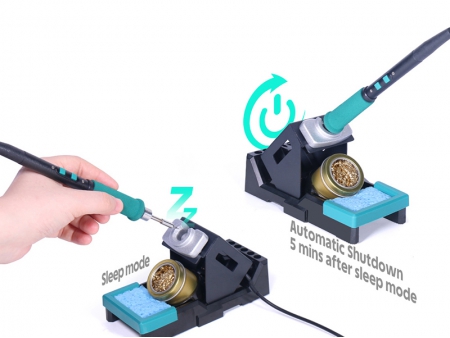

Sleep Mode and Auto Standby
Extends tip lifespan and enhances operational safety by reducing unnecessary wear.

992D II 8 temperature calibration

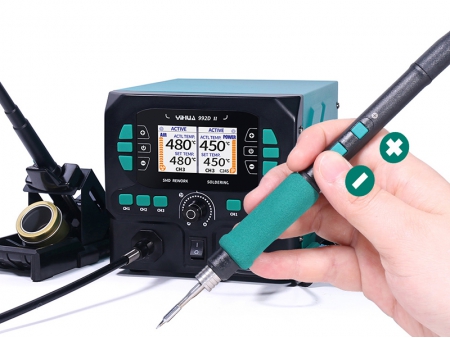

Quick-Access Button
Easily adjust the temperature using the convenient handle-mounted button.

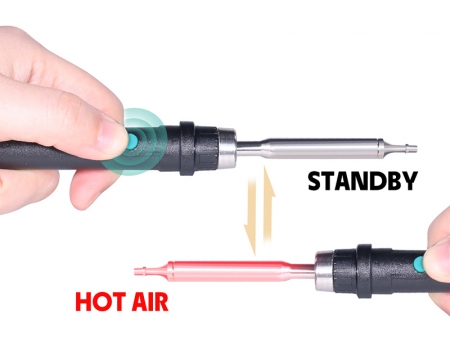

One-button conversion

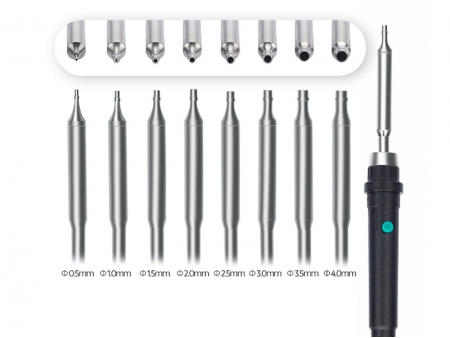

Nozzle Selection
Available nozzle sizes range from Ø0.5 mm to Ø4.0 mm to suit various precision applications.
