Vertical Tube Expander
Request a Quote
Vertical Tube Expander

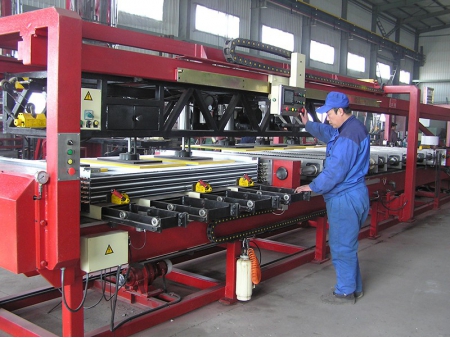

This vertical tube expander is specially designed for heat exchanger coil production. It can expand copper tubes, enlarge tube ends and flare tube ends in one cycle, to make copper tubes and aluminum fins join tightly for higher heating exchange efficiency.
The machine adopts centralized compulsive lubricating system for whole equipment lubrication.
- For large-size heat exchanger coil production, horizontal tube expanders will be used

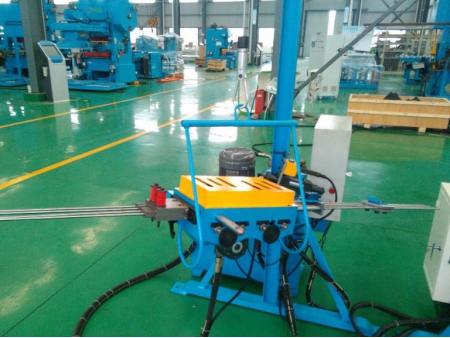

- For small-capacity workshops, portable tube expanders will be a good option
Technical Data
- Suitable copper tube OD1/2” (customized)
- Suitable copper tube wall thickness0.5mm
- Suitable copper tube rows (max.)6 (customized)
- Tube numbers in each row (max.)10 (customized)
- Hole pitchAs per drawing
- Row pitchAs per drawing
- Length of copper tube200~2100mm (customized)
- Parallelism error between header platesLess than 0.1% of coil width
- Coil surface errorLess than 1mm
- Coil length errorLess than 0.1% of coil length
- Concentricity error between expanding & flaring≤Φ0.2mm
- Max.hydraulic force for expanding30Tons
- Tact time30 seconds/cycle
- Quick-down speed (tube expanding)6.71m/min
- Slow-down speed (secondary flaring)1.1m/min
- Quick-up speed9.81m/min
