YIHUA 992D III High Power 2-in-1 Hot Air Soldering Station with C210/C245 Soldering Iron Kit

Request a Quote

View All: http://yihua-soldering.com/14-6-high-power-2-in-1-hot-air-soldering-station.html

Key Characteristics

2-in-1 high-power hot air soldering station: Combines a high-power hot air rework system with a C245-compatible soldering iron. Designed for soldering and reworking BGA components and complex PCBs. Both the micro soldering iron and SMD rework station can operate simultaneously—ideal for multitasking or dual-user setups without the need to switch handpieces.

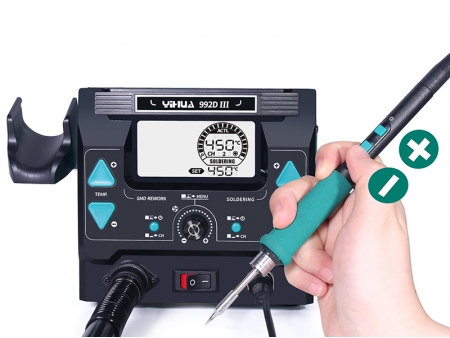

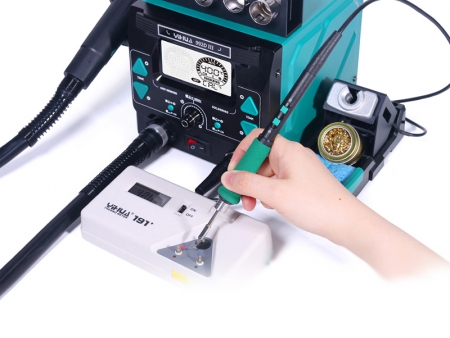

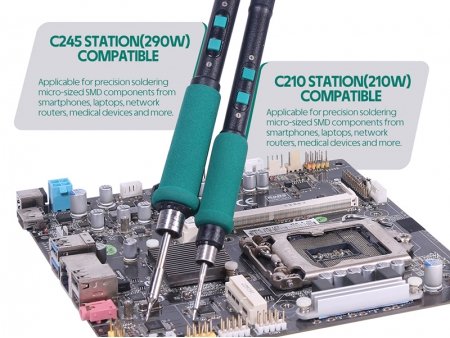

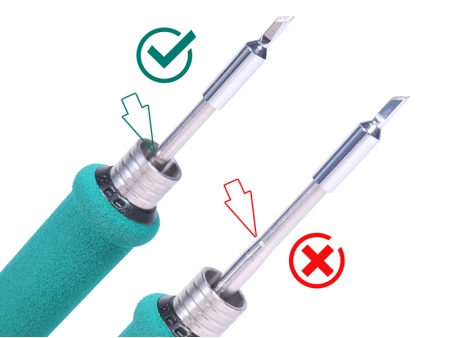

C245-compatible soldering iron kit: Features a high-precision soldering iron with a cartridge-type heating element that heats up in just 3 seconds. Perfect for both SMD and general soldering tasks. Its slim tip design offers a clear line of sight, making it ideal for working under a microscope and in tight spaces.

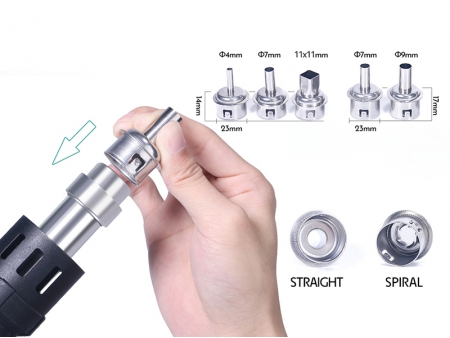

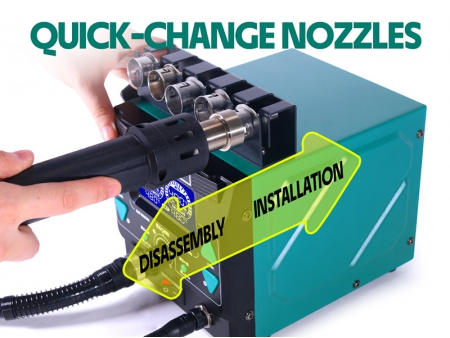

1000W hot air rework station: Offers an adjustable temperature range of 100–500℃ and a maximum air volume of 55L/min. Delivers rapid and concentrated heating for BGA components. Includes the industry's first detachable high-power hot air handpiece for easy replacement and high-frequency use. Comes with interchangeable nozzles and a storage rack.
User-friendly LCD display: Independent LCD screens for the soldering iron and hot air station show real-time temperature and system parameters for easy monitoring and control.

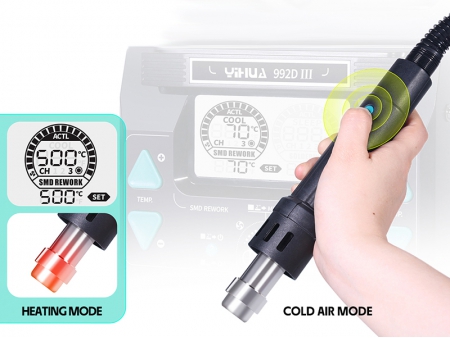

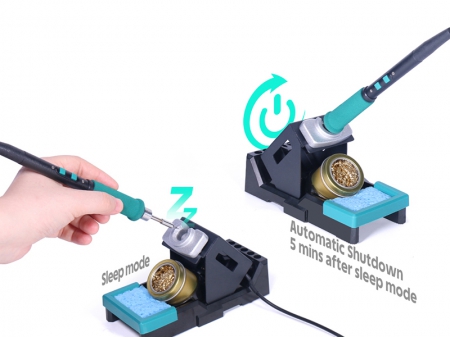

ow-wear standby mode: When placed in the holder, the soldering iron automatically cools to 200℃, and the hot air gun cools to 100℃, significantly extending the life of the heating elements and reducing wear on precision components.

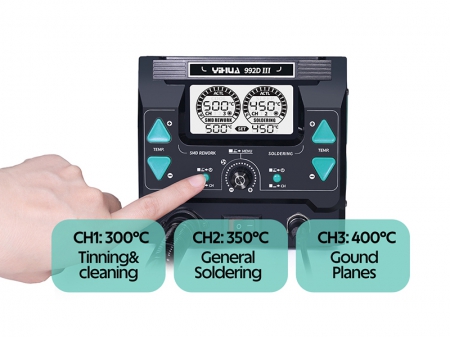

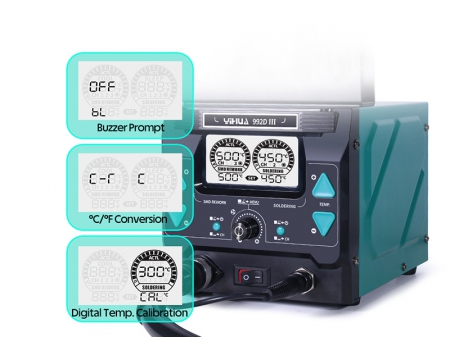

Convenient presets and smart menu: Three customizable preset channels allow you to save preferred temperature and airflow settings. The integrated menu includes buzzer alerts, digital temperature calibration, °C/°F conversion, and standby timer settings for personalized operation.

Parameters

Model	992D III
Rated power	1220W(C245 handpiece)/1140W(C210 handpiece)
Main unit dimensions	L200×W164×H156±5mm
Operating ambient temperature	0〜40℃/32℉〜104℉
Air delivery	compressor motor
Soldering iron temperature range	90〜450℃/194〜842℉
Air flow	≤55L/min
Hot air handle temperature range	100〜500℃/212〜932℉
