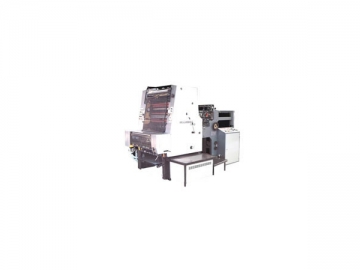

Offset Printing Machine (Movable Delivery Table)
Descriptions of Offset Printing Machine (Movable Delivery Table)
1. The maximum printing image is 330×445mm, so the printing machine can meet more requirements than the other kinds of printing machines.
2. The machine is equipped with a movable delivery table, so it is easy to use and can save more time.
3. High Performance in printing operation: There are three ink form rollers which can keep the ink more uniform than ever before.
Features of Offset Printing Machine (Movable Delivery Table)
Control panel/Computer control/Convenient and reliable/Window display/Easy to see
1. Micro-computer controlling system is available; so it makes number printing and showing printing speed selecting much easier than before.
2. A unique self-diagnose function may help you find and eliminate the fault quickly. The program edition system makes fault diagnosing much easier.
3. We can read the preprinting number and printing speed from the control panel directly when the key on the control panel is pushed down lightly.
4. The fault indicating can be saw from the monitor table up and down, like double-sheet detection in paper feeding and delivery paper jamming etc.
| Max. Printing Image | 330mm 445mm |
| Paper Size | Max.340mm 483mm |
| Paper Weight | 28-255g/m2 |
| Printing Speed | 2000-9000SPH |
| Paper Feed | Suction |
| Delivery | Chain |
| Capacity of Feed Table | 400mm |
| Capacity of Delivery Table | 420mm |
| Total Rollers | 14 pieces(3 ink form rollers) |
| Dimension | 1235×840×1285mm |
| Counter | LED display. pre-set. 4 digits |
| Double-Sheet Detection Range | 28-255g/m2 |
| Consumption Power | 850W |
| Power Supply | Single phase 220V 50Hz |
| Gross Weight | 400Kg |
