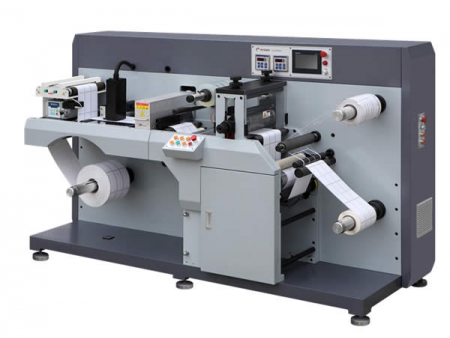

Flexo Printing Machine With Three Cutting
Request a Quote
YR-II series flexo printing machine with die cutting is based on advanced flexo graphic advice as well as domestic and foreign process. It can be extensively applicable in wine, tobacco, medical and other industries for adhesive packaging and printing.
Specifications| Applicable material | roll materials such as paper, film, aluminium foil, etc. |
| Printing color | 1-6 |
| Max unwinding/rewinding diameter | 550mm |
| Unwinding/rewinding shaft core | 3 inch |
| Reel material width | 70-330mm |
| Printing width | 60-320mm |
| Printing length | 175-355mm |
| Max printing speed | 60m/min |
| Overprint accuracy | ±0.15mm |
| Printing plate thickness | 0.38mm |
| Adhesive tape thickness | 1.7mm |
| Max die-cutting area | 350*320mm |
| Max cross cutting range | 350mm |
| Slitting range | 30-300mm |
| Power supply | 380V, 50Hz. 3-phase 4-wire |
| Main motor power | 2.2/3kw |
| IR dryer power | about 2kw/unit |
| UV dryer power | about 5kw/unit |
| Dimensions (L * W * H) | about 2200*1150*2700mm(5 color) |
| Weight | about 2400-3000kg |
We are a Flexo printing machine with three cutting manufacturer based in China. We offer an extensive line of products, including granulator, automatic capsule filling machine, softgel encapsulation machine, high speed blister packaging machine, high efficiency poreless tablet coating machine, and much more.
