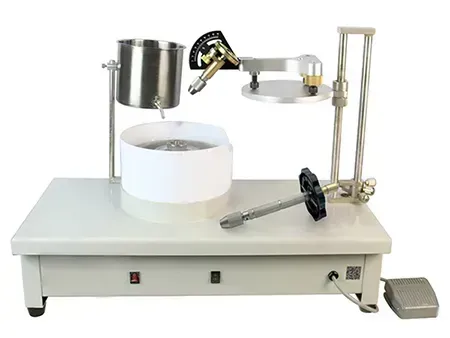

Gemstone cutting and polishing machine for creating gemstone shapes

Gem faceting machines are used for precise cutting and polishing of gemstones, feature that makes them an important tool in lapidary work. Their design ensures smooth operation, stable performance, and effective heat dissipation, minimizing noise even at high speeds. The compact and well-balanced structure provides ease of use for both professionals and enthusiasts.

Switch Type: Features a momentary switch for low-speed grinding and polishing, along with a foot switch for high-speed operation

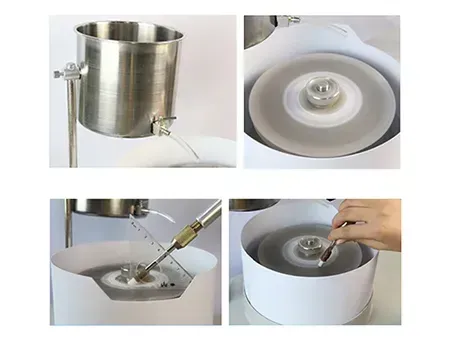

Drainage System: Designed with an anti-leak feature to prevent gemstone loss

Applications

Faceting and shaping gemstone surfaces
Can process all shapes of faceted and cabochon gemstones (diamond excluded).

Technical Parameters

Power Supply: AC220V, 50-60Hz
Motor Power: 170-180W
Motor Speed: 1350 rpm
Spindle Speed: 2300-2800 rpm

Worktable: Circular design with a 16cm diameter
Grinding Disc Diameter: 150mm
Angle Adjustment Range: 0-90°
Dimensions (L×W×H): 600mm × 270mm × 410mm

Included Accessories

Adjustable height worktable
Water cup with faucet

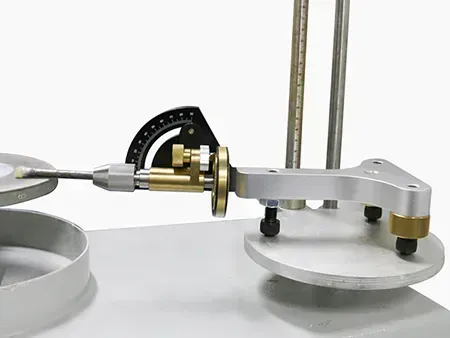

Faceting handpiece
Precision octagonal handpiece

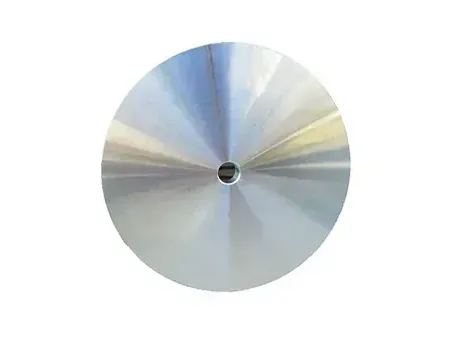

150mm zinc-alloy polishing disc

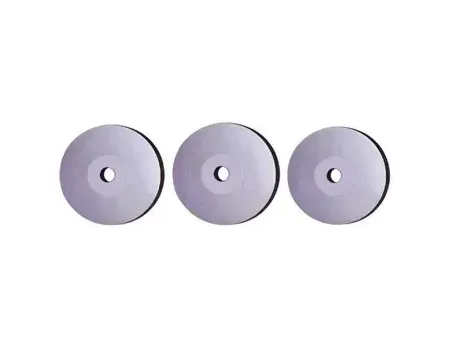

Diamond grinding discs (400#, 800#, 1200#)

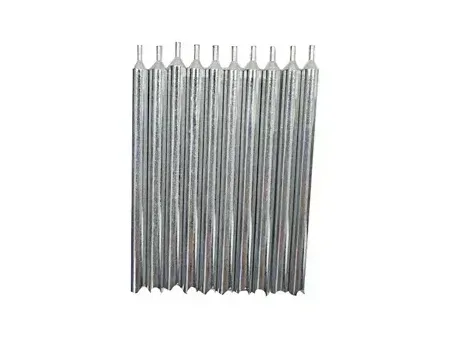

Dop Sticks: 10 pieces

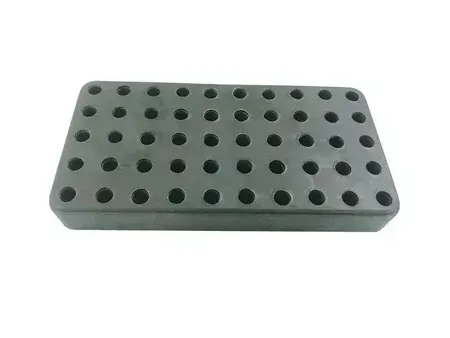

Dop Stick Insert Plate: Holds up to 50 dop sticks for organization

Dop Wax: Used for gemstone adhesion
10x Folding Loupe: For detailed inspection
Dop Plate: Aids in repositioning gemstones for pavilion faceting
Dop Worktable: used to fix and position gemstones during adhesion

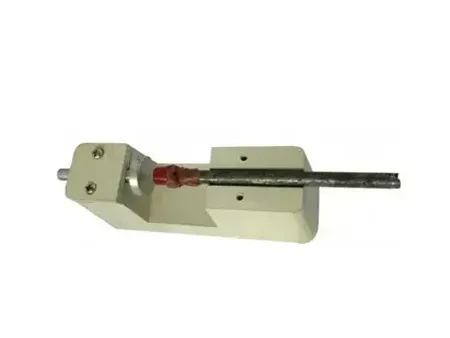

Transfer Dop (45° Block): Assists in faceting and polishing table facets
19mm Wrench: For securing and removing grinding and polishing discs
Pliers: 200mm length, 45mm grip width, 55mm max opening for securing dop sticks

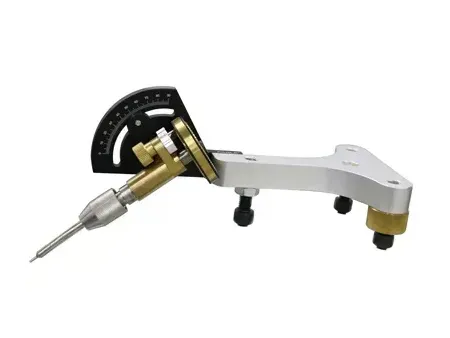

Faceting hand

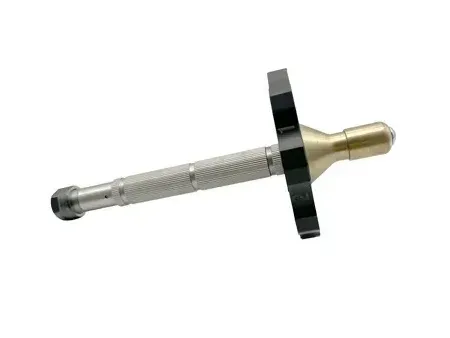

Precise octagon hand

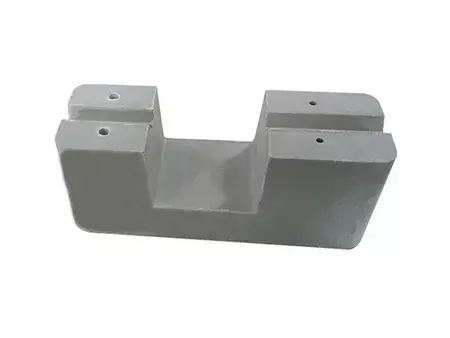

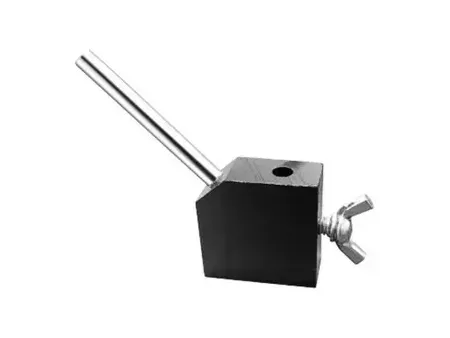

Transfer dop

Zinc disc for polishing

Zinc disc

Dop sticks

Dop sticks insert plate

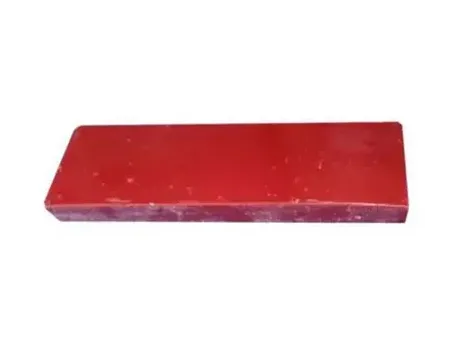

Dop wax

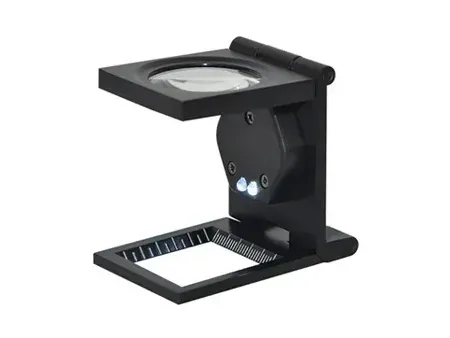

10X Gem loupe

Dop plate

Dop worktable

Wrench

Pliers
