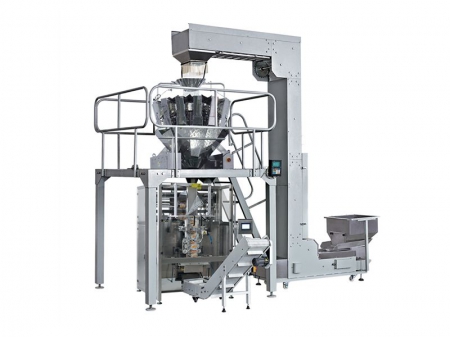

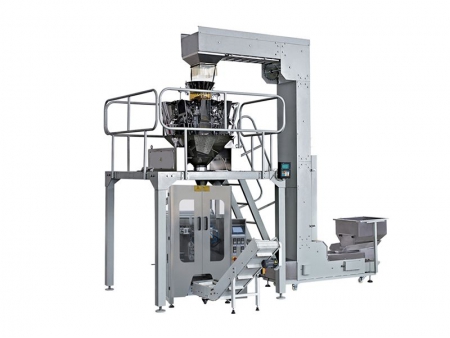

This multihead packing machine is designed for packaging, dosing and weighing regular and irregularly shaped materials, such as candy, sunflower seed, potato chip, happy fruit, peanut, jelly, freezing rice dumpling, biscuit, chocolate, nut, pet food, puffed food, small metal parts and plastic parts, etc.

This packing machine is equipped with precision digital measuring device, and its operating system comes with LCD display screen and can display operations in multiple languages, including English, Russian, German, Spanish and Italian, etc.

Main Features
  • IP65 waterproof and dustproof design. It's easy to clean and maintain.
  • Able to self-adjust during running.
  • Operation menu available to make you study and operate it more easily. The multihead packing machine is also designed with automatic data statistic function.
  • Optional configurations of this multihead packing equipment include printing equipment, suction hopper, and more.
  • High compatibility and compact structure.
  • This vertical packing machine can greatly save on materials and labor cost.
  • It automatically complete conveying product, measuring, bag-forming, filling, blowing nitrogen, date and code printing, cutting, finished product delivery
  • Famous brand PLC control system, wide version touch screen, convenient to operate. Film drawing down system and horizontal sealing controlled by servo motor; Multi-head balance can well assure the accurate weight of each package
  • Various package sizes can be made, by changing the former, the packing length is adjustable, Nitrogen filling device can be added.
  • Packing material: any laminated film such as POPP/CPP, POPP/VMCPP, BOPP/PE, PET/AL/PE, NY/PE, PET/PET, etc.

Specifications
Model
LT-420
LT-520
LT-720
Capacity Max 70bags/min Max 60bags/min Max 30bags/min
Bag size Width:60-200mm Width:100-250mm Width:150-350mm
Length:60-300mm Length:80-350mm Length:100-450mm
Max film width Max 420mm Max 520mm Max 720mm
Film thickness 0.04-0.09mm 0.04-0.09mm 0.04-0.09mm
Power source 2.2kW 220V 50HZ 3kW 220V 50HZ 4kW 220V 50HZ
Air consumption 0.8Mpa 0.5m3/min 0.8Mpa 0.6m3/min 0.9Mpa 0.7m3/min
Dimension (L×W×H) L1400 x W970 x H1600 mm L1430 x W1200 x H1700 mm L1780 x W1350 x H2000 mm
Weight 450kg 650kg 800kg

As a packing machine manufacturer and supplier in China, we can also manufacture grinding machine, drying equipment and many other types of food processing equipment. We welcome you to contact us for more information. We are confident that we can provide you the food equipment you are looking for.
