Multihead combination weigher packaging system for powders and granules

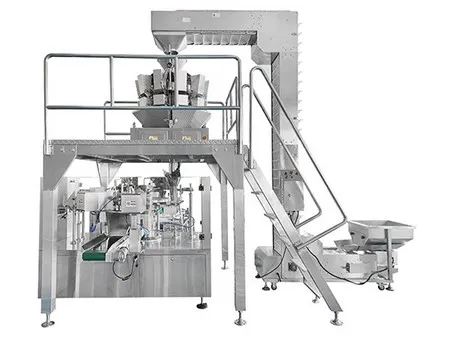

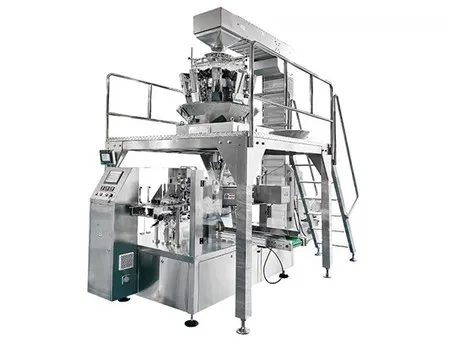

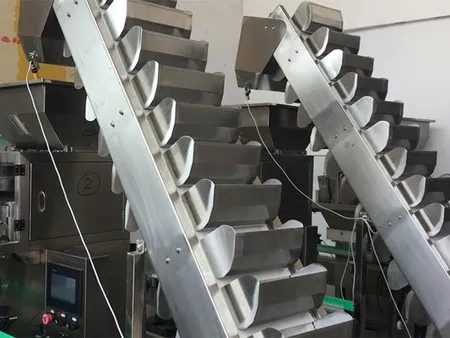

Multi-head weigher filling machines are suitable for the quantitative packaging of granular and powder materials such as snacks, hardware, monosodium glutamate, chicken essence, seeds, pesticides, fertilizers, rice, veterinary drugs, feed premixes, additives, laundry powder, etc. The number of heads can be customized according to the production needs of the customer, with common configurations including 4-head, 6-head, 8-head, 16-head, 32-head, etc. Optional accessories like elevators and conveyors can be added to achieve automatic filling.

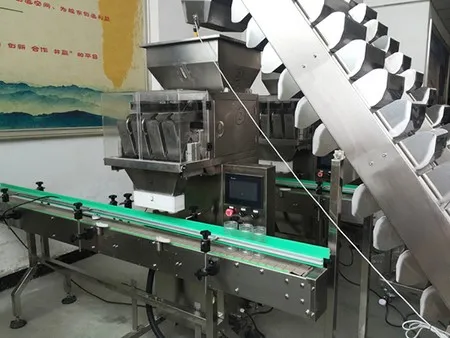

YX-GP04 4 Head Linear Weigher Filling Machine

  • Filling Range: 5g-2000g
  • Speed: 1800-2500pcs per hour
  • Accuracy: ±1%
  • Power Supply: AC220V 50Hz 500W
  • Machine Weight: 180kg
  • Machine Dimensions (L×W×H): 1200×600×900mm
  • Packages: plastic bag, cloth bag, paper bag, wide mouth bottle

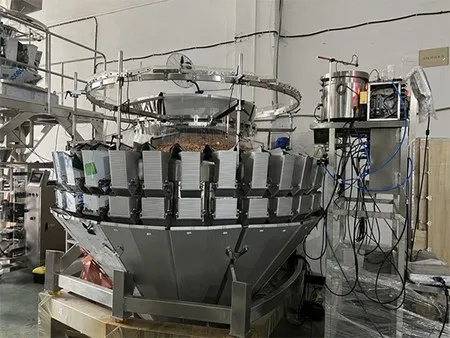

YX-A32-2-5 32-Head Multihead Weigher Filling Machine

  • Number of Heads: 32

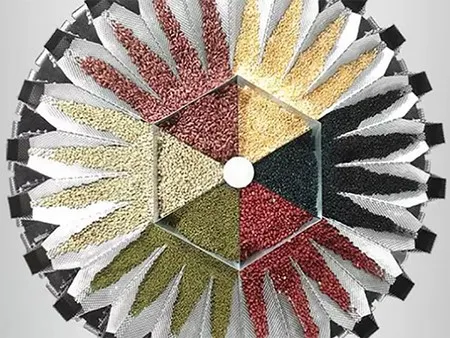

  • Mixing: up to 4 different products
  • Max. Weighing Weight: 3.2kg
  • Single Weighing Weight: 800g
  • Power Supply: AC220V, 50HZ-60HZ
  • Power: 2.5kW
  • Machine Dimensions (L×W×H): 2277×2277×3144mm
  • Gross Weight: 1350kg
Features
  • High-precision digital sensors, with an accuracy of ±1%, enable quick and precise weighing.
  • High-speed vibration feeding system automatically corrects errors to achieve high-precision packaging.
  • Parts in contact with materials are made of high-quality stainless steel, offering corrosion resistance, dust resistance, and easy cleaning.
