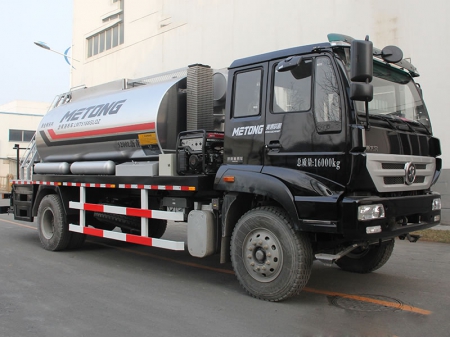

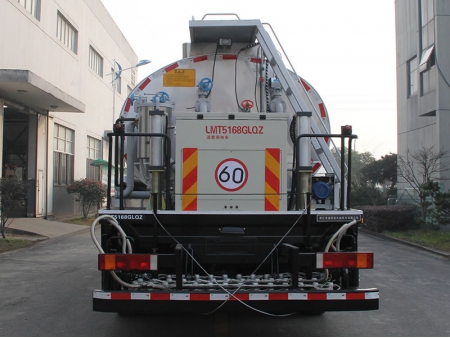

Automatic Asphalt Distributor
Brief Introduction
LMT5162GLQ automatic asphalt distributor is assembled with the chassis of the second degree vehicle and the asphalt spray device developed by our company. The stainless steel is made into the asphalt tank body. It adopts the aluminum silicate material to keep the heat preserved.
The asphalt pump is controlled by the hydraulic system and could transmit the asphalt steadily. There are two kinds of methods to spray the asphalt and they are rear pipeline computer-control automatic spray method and manual nozzle spray method. The spray volume is precisely controlled by the computer. LMT5162GLQ automatic asphalt distributor adopts the heat transfer oil to heat the asphalt pump and pipeline system. The pipeline and nozzle could be cleaned by using high pressure air and are not easy to block. The maximum spray width is up to 6m. It takes proud in its high efficiency of spraying and reliable working performance.
Feature
1. The famous chassis at home and abroad with stainless steel package is easy to clean.
2. The intelligent nozzle with high atomization capability could make the asphalt sprayed evenly. Then the pavement will withstand more pressure and water penetration.
3. The manual spray system is flexible, which greatly improves the construction mobility. The asphalt pump features high pressure and wearability.
4. Its spray work is controlled by the computer, making the spray system work more accurately with high degree of automation.
5. LMT5162GLQ automatic asphalt distributor could be applied into the transport and spray work for all kinds of asphalt.
| Item | Parameter |
| Name | Asphalt Distributor |
| Model | LMT5162GLQ |
| Brand | Zhetong Brand |
| Outline Dimension of Complete Vehicle (L/W/H mm) | 8995×2490×3200 |
| Tank Capacity (m3/density) | 8T (Announcement 6.17/0.97) |
| Chassis Model | DFL1160BX |
| Chassis Manufacturer | Dongfeng Motor Company |
| Vehicle Pattern | Flathead 4×2 rear drive |
| Tire Specification | 9.00-20/9.00R20 |
| Approach Angle/ Departure Angle | 20°/14° |
| Engine Rated Power/ Rotation Speed (kw/r/min) | 140/2500 |
| Fuel Type | Diesel |
| Engine Model Pattern and Category | B190 33 (made by Commins) |
| Inline 6 cylinder 4-stroke supercharge | |
| Discharge Standard | GB17691-2005 (National Ⅲ) GB3847-2005 |
| Seating Capacity (including the driver) | 3 |
| Top Speed (km/h) | 90 |
| Complete Vehicle Weight (kg) | 16000 |
| Rated Load (kg) | 5705 |
| Working Speed (km/h) | 2.5~10.5 |
| Asphalt Pump Discharge (L/r) | 0.86 |
| Max. Spray Width (m) | 6 |
| Asphalt Spray Volume (L/m2) | 0.3-3.0 |
| Drive System | Driven by hydraulic system |
| Max. Pressure of hydraulic system (MPa) | 15 |
| Heat Preservation Way of Asphalt Pump | Heat is preserved by the heat transfer oil heating system. |
| Cleaning Way | Cleaning using high pressure air and diesel |
Construction Case

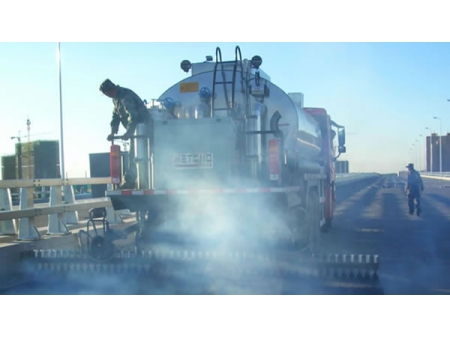

LMT5162GLQ Asphalt Distributor at the construction site in Heilongjiang
Brief Introduction
LMT5161GLQ automatic asphalt distributor adopts the chassis of the second grade vehicle while the asphalt spray device is developed by our company. The asphalt tank body is made of stainless steel and the aluminum silicate is used to be its insulation material, so it has favorable heat preservation performance.
The asphalt pump, controlled by the hydraulic system, could work with steady transmission. Choosing the rear pipeline computer-control automatic spray method or the manual nozzle spray method depends on the construction situation. The spray volume is accurately controlled by the computer. The asphalt pump and pipeline system are all heated by using the heat transfer oil. The high pressure air is used to wash the pipeline and nozzle so that they are not easy to block. Its maximum spray width reaches 6m. LMT5161GLQ automatic asphalt distributor features high efficiency in spraying and reliability in working performance.
Feature
1. The well-known chassis at home and abroad is packaged with stainless steel and is easy to clean.
2. This intelligent nozzle has high atomization capability. The asphalt could be sprayed evenly to make the pavement resist the pressure and water penetration.
3. The flexible manual spray system greatly improves the construction mobility. The asphalt pump features high pressure and wearability.
4. The computer controls the whole process of the spraying work. The spray system could realize its precise spraying work with high degree of automation.
5. LMT5161GLQ automatic asphalt distributor could be applied into the transport and spray work for all kinds of asphalt.
| Item | Parameter |
| Name | Asphalt Distributor |
| Model | LMT5161GLQ |
| Brand | Zhetong Brand |
| Outline Dimension of Complete Vehicle (L/W/H mm) | 8785×2455×3015 |
| Tank Capacity (m3/density) | 8T (Announcement 9/0.7) |
| Chassis Model | BJ5163ELFFD |
| Chassis Manufacturer | Beiqi Foton Motor Co., Ltd |
| Vehicle Pattern | Flathead 4×2 rear drive |
| Tire Specification | 9.00-20 |
| Approach Angle/ Departure Angle | 20°/12° |
| Engine Rated Power/ Rotation Speed (kw/r/min) | 116/2300 |
| Fuel Type | Diesel |
| Engine Model Pattern and Category | CA4DF3-15E3 (made by Xichai) |
| Inline 4cylinder 4-stroke supercharge | |
| Discharge Standard | GB17691-2005 (National Ⅲ) GB3847-2005 |
| Seating Capacity (including the driver) | 3 |
| Top Speed (km/h) | 90 |
| Complete Vehicle Weight (kg) | 15800 |
| Rated Load (kg) | 6000 |
| Working Speed (km/h) | 2.5~10.5 |
| Asphalt Pump Discharge (L/r) | 0.86 |
| Max. Spray Width (m) | 6 |
| Asphalt Spray Volume (L/m2) | 0.3~3.0 |
| Drive System | Driven by hydraulic system |
| Max. Pressure of hydraulic system (MPa) | 15 |
| Heat Preservation Way of Asphalt Pump | Heat is preserved by the heat transfer oil heating system. |
| Cleaning Way | Cleaning using high pressure air and diesel |
Construction Case
LMT5161GLQ asphalt distributor at the construction site in Heilongjiang
Brief Introduction
The LMT5120GLQ automatic asphalt distributor is assembled with the chassis of the second degree vehicle and the asphalt spray device developed by our company. The stainless steel package makes the asphalt tank look nice. The heat insulation material adopts aluminum silicate, so this asphalt distributor has preferable heat preservation performance.
The asphalt pump works under the hydraulic control system in the safe and reliable way. The transmission work goes steadily. There are two kinds of ways to spray the asphalt. The rear pipeline computer-control automatic spray method and the manual nozzle spray method are all available. The Spray volume is precisely controlled by the computer. The asphalt pump and pipeline system adopts the heat transfer oil heating system to keep the heat preserved. The pipeline and nozzle are not easy to block since they are cleaned through using the high pressure air. Its maximum spray width could be up to 6m. The LMT5120GLQ automatic asphalt distributor could efficiently finish the spray work under secure and reliable conditions.
Feature
1. The well-known chassis at home and abroad is packaged with the stainless steel, which makes it easy to keep the chassis clean.
2. The intelligent nozzle has strong atomization capability so that the asphalt could be evenly sprayed and the pavement could withstand more pressure and water penetration.
3. The flexible manual spray system greatly improves the construction mobility. The asphalt pump features high pressure and wearability.
4. Computer-controlled spray system could accurately finish the automated spray work.
5. LMT5120GLQ automatic asphalt distributor is suitable for the application in the transport and spray work for all kinds of asphalt.
| Item | Parameter |
| Name | Asphalt Distributor |
| Model | LMT5120GLQ |
| Brand | Zhetong Brand |
| Outline Dimension of Complete Vehicle (L/W/H mm) | 8990×2350×2855 |
| Tank Capacity (m3/density) | 6.6T (Announcement 6.6/0.7) |
| Chassis Model | BJ1123VJPFG-S |
| Chassis Manufacturer | Beiqi Foton Motor Co., Ltd |
| Vehicle Pattern | Flathead 4×2 rear drive |
| Tire Specification | 8.25-20 |
| Approach Angle/ Departure Angle | 20°/12° |
| Engine Rated Power/ Rotation Speed (kw/r/min) | 116/2300 |
| Fuel Type | Diesel |
| Engine Model Pattern and Category | CA4DF3-15E3 6.6T (made by Xichai) |
| Inline 4cylinder 4-stroke supercharge | |
| Discharge Standard | GB17691-2005 (National Ⅲ) GB3847-2005 |
| Seating Capacity (including the driver) | 3 |
| Top Speed (km/h) | 90 |
| Complete Vehicle Weight (kg) | 12005 |
| Rated Load (kg) | 4400 |
| Working Speed (km/h) | 1.2~6.5 |
| Asphalt Pump Discharge (L/r) | 0.86 |
| Max. Spray Width (m) | 6 |
| Asphalt Spray Volume (L/m2) | 0.3~3.0 |
| Drive System | Driven by hydraulic system |
| Max. Pressure of hydraulic system (MPa) | 15 |
| Asphalt Heat Preservation Way | Heat is preserved by the heat transfer oil system. |
| Cleaning Way | Cleaning through using the high pressure air and diesel. |
Construction Case
LMT5120GLQ Asphalt Distributor at the construction site in Heilongjiang
Our automatic asphalt distributor adopts the advanced foreign and domestic technologies. In addition, we join with Chang'an University, Zhejiang University and other renowned universities in researching and developing new automatic asphalt distributor.
Application
Automatic asphalt distributor is a kind of road machinery. It is applicable for layer-penetration oil, waterproof layer and bond coat at the bottom layer of high-level asphalt road.
Configuration
LMT series of automatic asphalt distributor is made up of chassis, asphalt tank, asphalt pump, spray system, heat conduction oil heating system, hydraulic system, electric control system, automatic control system and rinsing series. The main fitting adopts the most advanced components with computer system controlled spraying. Our automatic asphalt distributor's accuracy meets Euro standards.
Together with the advantages of asphalt distributors in the world, with automatic asphalt distributor, we innovated four new technologies:
1. Any asphalt used is displaced.
2. Asphalt nozzle is multilayer filtrate and keeps the quality of spray.
3. Asphalt spraying is controlled by computer system.
4. Asphalt spray is suitable for asphalt pavement construction, which can improve performance achievements to international standards with zero tolerance.
| Model | LMT5251GLQ | LMT5161GLQ | LMT5162GLQ | LMT5120GLQ | LMT5111GLQ |
| Chassis Model | ZZ1257M4647C | BJ5163ELFFD | DFL1160BX | BJ1123VJPFG-S | EQ1110TJ12D5 |
| Truck Type | Cab-over-Engine 6X4 | Cab-over-Engine 4×2 | Cab-over-Engine 4×2 | Cab-over-Engine 4×2 | Cab-over-Engine 4×2 |
| Asphalt Capacity(L) | 12000 | 8000 | 8000 | 6600 | 6000 |
| Spray bar variable(M) | 0.-6 | 0.-6 | 0.-6 | 0.-6 | 0.-6 |
| Spray bar Value (KG) | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 |
| Spray Precision | ≤ 2% | ≤ 2% | ≤ 2% | ≤ 2% | ≤ 2% |
| Dimension(LxWxH)MM | 10500×2496×3350 | 8785×2455×3015 | 8995×2490×3200 | 8990×2350×2855 | 7995X2270X2870 |
| Weight (KG) | 25000 | 15800 | 16000 | 12005 | 11495 |
Strengths of Automatic Asphalt Distributor:
1. Automatic asphalt distributor boasts three layers. It can adjust the spray amount according to its operational speed.
2. The whole asphalt spraying process can be finished in the cab.
3. Each nozzle is controlled by separate computer. The spray width can be adjusted at random.
4. The control procedure is equipped with two control systems, cab and post operational platform to ensure the reliability of asphalt spray.
5. The computer control system adopts modular design for lower accident rate and maintenance.
6. The temperature of asphalt in tank is kept below or equal to two degrees per hour.
7. The distributor is equipped with automatic blowing device to shift the asphalt outside to the tank.
8. The machine is also equipped with spray gun device to add asphalt at the opposite corner.
9. Asphalt pump, nozzle and asphalt tank can be heated with heat transfer oil completely or separately.
10. The safe and reliable heat transfer oil heating system is controlled automatically.
11. Two kinds of speed testing devices are available: infrared impulsive sensor and America Dickey-John radar velocity.
We are an experienced automatic asphalt distributor manufacturer and supplier in China. We are engaged in producing and developing a wide variety of pavement equipment. Our products include micro-surfacing, Chip Sealing Distributors and Equipment, road maintenance truck, rubber bitumen plant and the like. They are widely used in areas, such as bridges, highways, tunnels, airports and municipal works. We strictly conduct quality management and manage to be cost-effective. As a result, with advanced technology, reliable quality and reasonable prices, our products are exported to more than forty countries, including Russia, Kenya and Indonesia, and win wide recognition and approval there. Welcome customer to purchase and use.
-
-

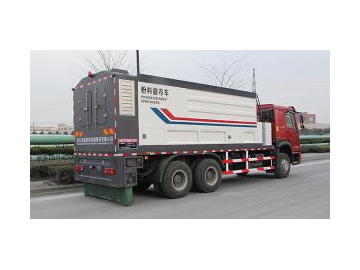

- Cement spreader is designed for spreading cement and powder materials in the process of road reconstruction under cold-recycling technology, as well as spreading various soil stabilizing binders and other power materials. Cement spreader not only used for road cold in-place recycling but also a special equipment for soil stabilization, can be used widely in road and municipal construction works.
-
-

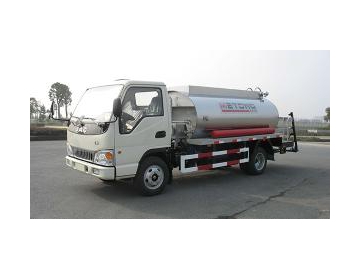

- The natural appearance of manual asphalt distributor is very magnificent and awesome. The asphalt tank is made of stainless steel at the outer cover that gives a brilliant reflection and gives a great shiny impression.
-
-

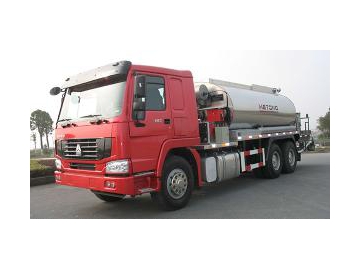

- LMT5251GLQ rubber asphalt distributor is assembled with the second class chassis manufactured by CNHTC and the asphalt spray device developed by our company.
