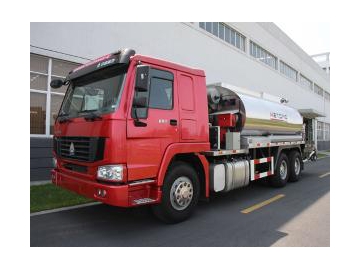

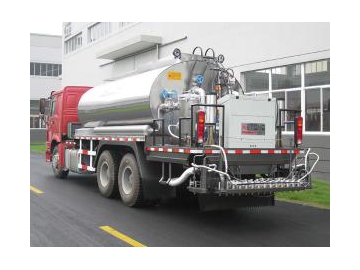

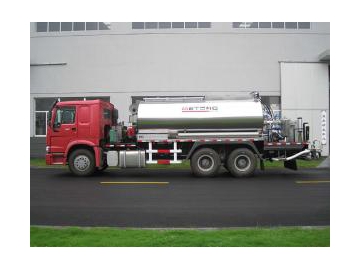

Semi-Automatic Asphalt Distributor
Semi-automatic asphalt distributor is a highly precise measuring asphalt spreader. It is often used to road construction and maintenance of bridges, highways, tunnels, airports, municipal works.
Introduction and Application of Semi-Automatic Asphalt Distributor
Semi-automatic asphalt distributor adopts asphalt spray bar fixed value display device, nozzle auto-control device, etc. In the aspect of spraying, it has the same spray efficiency as automatic asphalt distributor, it can satisfy the high-tech requirement of high rate of road asphalt spraying. While the price is close to the manual asphalt distributor, so it is favored by clients greatly.
The outstanding characteristics of semi-automatic asphalt distributor are huge capability, high technology and reasonable prices, it adopts overseas advanced technology, and develops together with the research of Zhejiang University, Zhejiang Industry University, etc. We made the first in China, and filled up vacancy of the high rate of the asphalt distributor in China at present. This type of product has won Zhejiang excellence science product certification in 2002, five national patents, and satisfactory products by the clients.
Auto-burner controls burner's switch automatically.
Asphalt flow rate indicator can adjust spray volume.
| Model | LMT5251GLQ | LMT5162GLQ | LMT5161GLQ | LMT5120GLQ | LMT5111GLQ | LMT5090GLQ | LMT5081GLQ |
| Truck Type | Cab-over-Engine 6X4 | Cab-over- Engine 4X2 | Cab-over-Engine 4X2 | Cab-over-Engine 4X2 | Cab-over-Engine 4X2 | Cab-over-Engine 4X2 | Cab-over-Engine 4x2 |
| Chassis Model | ZZ1257 M4647C | DFL1160BX | BJ5163 ELFFD | BJ1123 VJPFG-S | EQ1110 TJ12D5 | EQ1090 T9ADJ3AC | HFC1081KT |
| Burner Model | G20 | G20 | G20 | G20 | G20 | G20 | G20 |
| Asphalt Capacity(L) | 12000 | 8000 | 8000 | 6600 | 5400 | 4500 | 5000 |
| Spray bar variable(M) | 0-6M | 0-6M | 0-6M | 0-6M | 0-6M | 0-6M | 0-5.5M |
| Spray bar Value (KG) | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3~3.0 | 0.3~3.0 |
| Dimension (LxWxH)MM | 10500×2496 ×3350 | 8995×2490 ×3200 | 8785×2455 ×3015 | 8990×2350 ×2855 | 7998×2260 ×2870 | 7445×2285 ×2560 | 7350×2010 ×2460 |
| Weight (KG) | 25000 | 16000 | 15800 | 12005 | 11495 | 9400 | 8490 |
As a professional semi-automatic asphalt distributor manufacturer and supplier in China, we also produce road machinery, such as micro-surfacing, chip spreader, pavement cleaning truck, modified emulsion bitumen plant, in addition to asphalt distributor truck. Besides, our company has received ISO9001 certification. With high efficiency and excellent performance, our products are widely used in the all provinces and municipals in China and more than forty foreign countries, including Russia, Kenya, Chile and Philippines. If you are in need of our semi-automatic asphalt distributors, please contact us. We are looking forward to working with you.
