Asphalt Mixer

Request a Quote

View All: http://metongchina.com/2d-mixer-plant.html

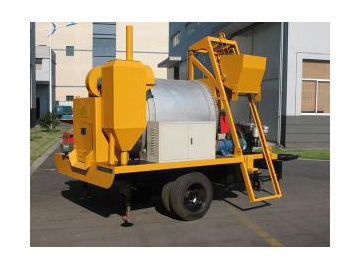

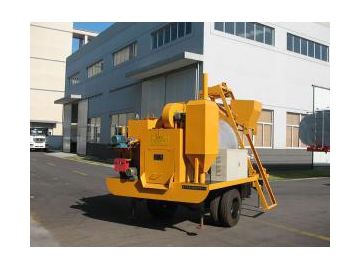

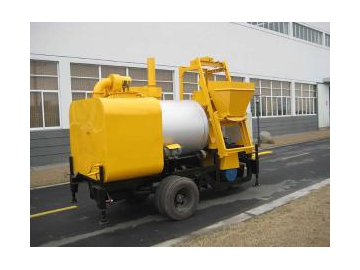

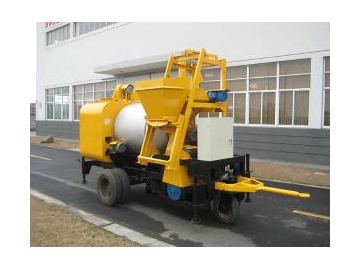

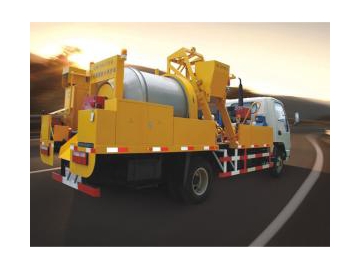

Asphalt mixer is the common pavement equipment for road construction and maintenance. The common ones are mobile double-cylinder asphalt mixer, mobile forced asphalt mixer, placed end product warehouse design asphalt mixer and the like. They are widely used in construction of bridges, highways, tunnels, airports, and municipal works and so on.

Introduction
Asphalt Mixer is an up-grade successfully developed compared to traditionally used mixer in engineering construction industries. It has accurate digital proportional mixer and also has temperature controlling system that enables flexibility in temperature control, proportional capability. The spray pipe of asphalt mixer is much closer to the bottom of its tires, which creates safe working environment, reduction of environmental issues and safe guard of equipment itself.
Fuel system of Asphalt Mixer is the most advanced burner ZHC type oil burner. The product can also burn asphalt as fuel.
Asphalt Mixer has record in its reliability, efficiency, quality and productivity throughout China as well as other countries. It is greatly used in highway road, mine, oil field construction and much more civil construction projects.

Main Parts/ Features of Asphalt Mixer

Classes	Item	Parameter
General Parameter	Productivity	≤3-5T/h
	Working Voltage	380V/50HZ
	Total Power of Electrical Equipment	≤12Kw
	Dimension (mm)	5290x2133x3450
	Manual Asphalt Speed (L/min)	30
Agitation Vat	Capacity (m³)	0.22
	Temperature (℃)	120-160
	Driving Mode (KW)	3
	Burner (KW)	240
Asphalt System	Capacity (m³)	0.48
	Asphalt Temperature (℃)	100-160
	Asphalt Pump (m³/h)	3
	Pressure (Mpa)	0.6
Electric System	Generator (KW)	12

As a professional asphalt mixer manufacturer in China, our road maintenance machinery features advanced technology, convenient operation, high efficiency and reasonable prices. As a result, our products are widely used in more than forty countries and regions, such as Russia, Indonesia and Dubai. In addition to asphalt mixer , we also produce Chip Sealing Distributors and Equipment, asphalt distributor, rubber asphalt plant and other road equipment with the aim of satisfying the market demands. If you are in need of such products, please contact us!

Pavement cleaning truck is a kind of road cleaning truck, integrating cleaning and transporting. With easy constructer and convenient operation, such truck is suitable for cleaning roads and squares.

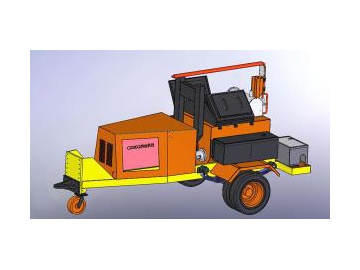

The road sealing machine can easily solve the pollution problem caused by dropping material due to its back suction function. The material storage container can be indirectly heated by heat-transfer oil.

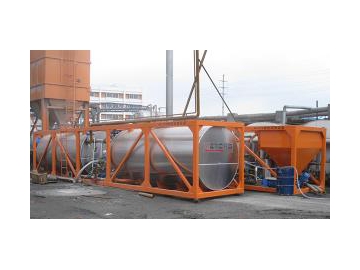

This plant was designed to produce crumb rubber modified bitumen (asphalt rubber-AR). We are the first and the only one factory cooperated with USA technology. We are now have container frame type and mobile type, with the capacity from 10t/h to 30 t/h. Specially suitable for different projects requirement.

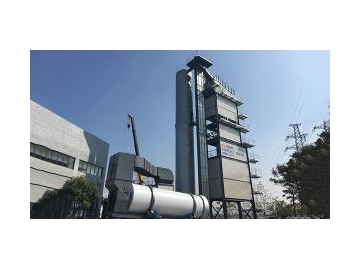

Near 20 years experience on asphalt related machines and based on site experience and cooperation with European technology, our designed Asphalt batch plant is kind of environment plant, very popular for construction and maintenance work of high grade road, airport etc. With high efficiency, stability.
