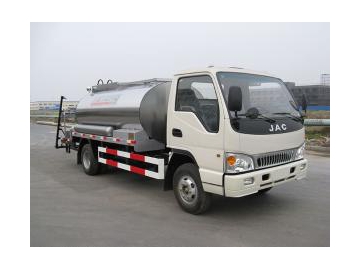

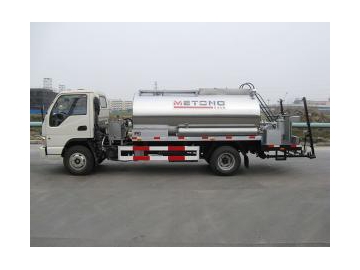

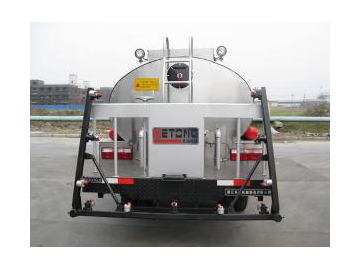

Manual Asphalt Sprayer
Introduction
Manual asphalt distributor is a product developed by China's leading machinery manufacturer - the METONG Corporation in China.
The natural appearance of manual asphalt distributor is very magnificent and awesome. The asphalt tank is made of stainless steel at the outer cover that gives a brilliant reflection and gives a great shiny impression.
The spraying capability is automatic at a uniform flow throughout the whole length of the spray pipe at the set flow rate to field requirements. The entire asphalt contact area from spray tank through to the spray pipe has a convenient clean-out system with good temperature preservation function. The main fittings and structural component adopts most advanced technology and much evaluation.
The operation of manual asphalt distributor is much more convenient and has a greater flexibility during operation. It has a greater advantage in uniformity during operation particularly if the spray bar value is less than 0.8Kg/m2.
Main Features and Characteristics
1. Out-cover of asphalt tank is stainless steel (Patent No. Zl 02 2 16280.1)
2. Asphalt, water sprinkling is of multi-purpose
3. Flexibility in usage with variety specially high-temperature asphalt, emulsified asphalt and modified asphalt
4. This manual asphalt distributor has two sets of pipeline cleaning system and doesn't require external cleaning methods.
5. Our asphalt distributor has a tremendous heating system and is equipped with rear lighting system.
6. It has two sets of spray gun that work synchronously.
7. Adjustable, rotational and tapered rear spraying nozzle.
8. Spraying pipe is flexible, rotational and can be folded with adjustable spray bar width of 0-6m.
9. Complete electronic monitoring operation equipment straight from its cab.
Model | LMT5162GLQ | LMT5161GLQ | LMT5111GLQ | LMT5090GLQ | LMT5081GLQ | LMT5061GLQ |
Chassis Model | DFL1160BX | BJ5163ELFFD | EQ1110TJ12D5 | EQ1090T9ADJ3AC | HFC1081KT | HFC1065K1DT |
Truck Type | Cab-over-Engine 4X2 | Cab-over-Engine 4X2 | Cab-over-Engine 4X2 | Cab-over-Engine 4X2 | Cab-over-Engine 4X2 | Cab-over-Engine 4X2 |
Asphalt Capacity(L) | 8000 | 8000 | 5400 | 4500 | 5000 | 3500 |
Spray bar Variable(M) | 0-6.0 | 0-6.0 | 0-6.0 | 0-6.0 | 0-5.5 | 0-4.5 |
Spray bar Value(KG) | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 |
Dimension (L×w×H) MM | 8995×2490×3200 | 8525×2440×3150 | 7960×2260×2860 | 7430×2250×2550 | 7375×2010×2520 | 6460×1980×2400 |
Weight(KG) | 16000 | 15800 | 11495 | 9400 | 8490 | 6495 |
We are one of the major manual asphalt distributor manufacturers and suppliers in China. Our manual asphalt distributor has received patent in multifunction. With reliable quality, advanced technology, economical prices and practical use, our products are widely used in construction of highways, municipal works, airports, etc. In addition to manual asphalt distributor, we also produce other road equipment, such as micro-surfacing, Chip Sealing Distributors and Equipment, chip spreader, pavement cleaning truck, modified emulsion bitumen plant. With precise metering, easy operation, convenient cleansing, our products are popular with customers across China, and in more than forty countries and regions, including Russia, Mongolia, Pakistan, Nigeria and Peru. Thank you for your visit. If you want to learn more about our other road construction equipment and road maintenance trucks, please turn to the product web page, or contact us directly.
