Standard 2-Component Adhesive Mixer, SM1-40

Standard 2-Component Adhesive Mixer, SM1-40
Request a Quote

Patented product, high precision mixing ratio from 30:100 to 100:100

Two-component solvent free glue
Mixing ratio: 30:100~100:100
Gear pump driver motor: servo motors

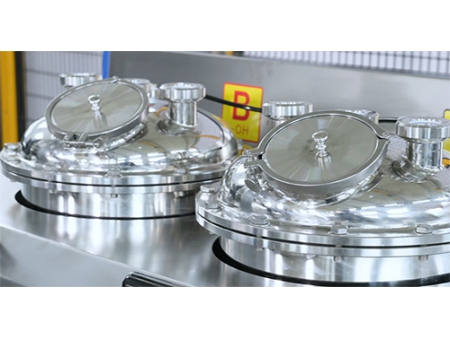

Tank capacity: 2 x 40L
Maximum working temperature: 70℃
Installed power: 4KW
Weight: About 500kg
Auto-refilling system: optional
Machine dimension: 1350 x 1000 x 1250mm (L x W x H)
Features

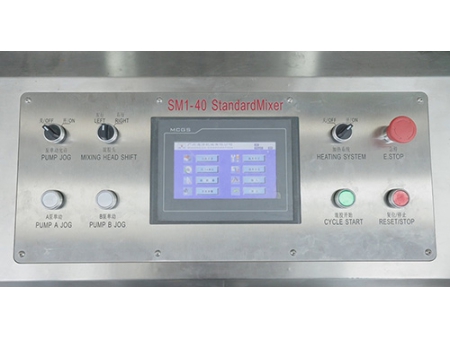

The SM1-40 standard mixer is a patented metering mixer, suitable for two component, solvent free glues. The gear pumps are driven by servo motors instead of vector motors, in order to ensure a more accurate and stable mixing ratio over other similar products on the market today. Controlled using a PLC touch screen, and featuring automatic control for temperatures, piping pressure, and glue level, the mixer can be used for various laminators with different running speeds, working width and coating amounts.
