Turntable Bottle Unscrambler
We offer packaging solutions from stand-alone packaging machines to complete packaging lines.

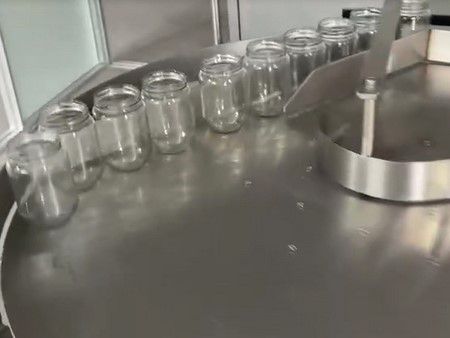

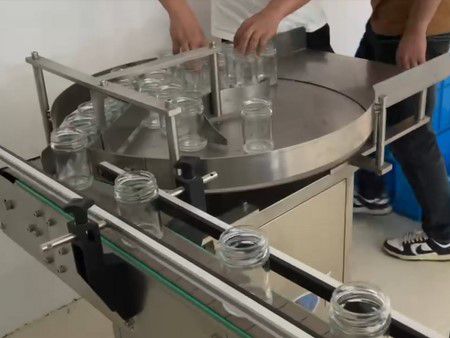

The turntable bottle unscrambler, positioned at the forefront of a filling line, serves to organize empty bottles and convey them to the filling equipment, thereby enhancing efficiency and accuracy. Our turntable bottle unscrambler is an excellent option for bolstering productivity, as it enables swift, stable, and precise discharge and transport of bottles. Moreover, it features easy operation and maintenance, making it a practical choice for businesses. Its compatibility with 50-500ml bottles further enhances its applicability across a range of production needs.
Round containers of various materials, such as glass bottles, plastic bottles, cans, paper cans.
ApplicationsThis turntable bottle unscrambler is mainly used in the food and beverage industry for bottled water, juices, and liquor, as well as in pharmaceutical and chemical industries for various bottled products.
Center of gravity and eccentricity helps control the positioning and orientation of the bottles, allowing for efficient and accurate transfer to the filling equipment.
- A stainless steel worktable

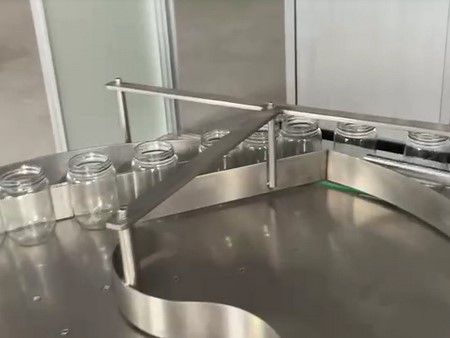

- A baffle plate
- A motor
- A column
| Bottle volume | 50-500ml |
| Bottle diameter | Ø10-120mm |
| Bottle height | 60-300mm |
| Production capacity | 30-40bpm |
| Power supply | 220V, 50Hz |
| Total power | 0.12kW |
| Dimensions | 750×600×900mm (adjustable height) |
