Bottle cleaning machine for in-line washing of plastic and glass bottles or cans
Bottle cleaning machine for in-line washing of plastic and glass bottles or cans

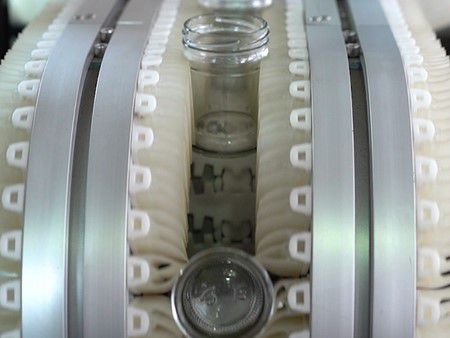

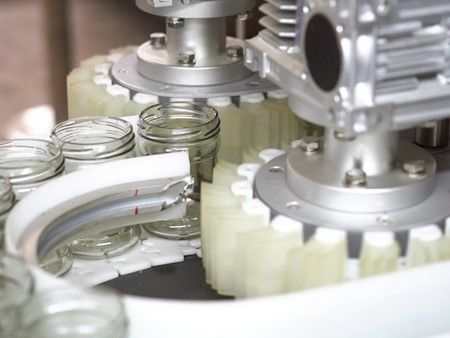

The side-grip bottle rinser features a side grip that holds empty containers, rotate them, and thoroughly cleans them through high-pressure water or cleaning fluids. Its versatility extends to jars, plastic bottles, glass cans, and other containers with large dimensions, making it an ideal choice for a wide array of production needs. Boasting exceptional efficiency and easy operation, this bottle washing machine is set to enhance your packaging process. With dimensions accommodating a range of container sizes (W38-100mm, H50-300mm), the side-grip bottle rinser epitomizes both efficiency and adaptability in one seamless package.

Applicable container types

Containers with large dimensions such as jars, hard plastic bottles, glass cans.

Applications

This side-grip bottle rinser is widely used in food filling lines, drink filling lines and pharma filling lines to clean juice bottles, wine bottles, medicine containers, etc.

Features
  • Adaptable to various bottle shapes (flat bottles, round bottles, square bottles, special-shaped bottles, etc.).
  • Water rinsing, steam rinsing, air flushing available.
  • Easy switch between bottle types by adjusting the width of the side grip.
Main Components

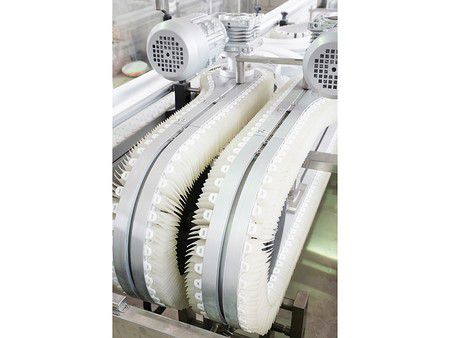

A durable stainless frame, fixed adjustable side-grip conveyors, a multi-touch PLC control system with frequency control.

Specifications
Production capacity 30-40bpm (depending on bottle size) Applicable bottle diameter: 38-100mm Applicable bottle height: 50-300mm
Water consumption 0.5-1.0m³/h
Air pressure 0.6-0.8Mpa
Air consumption 0.3m³/min
Total power 2.0kW
Dimensions 3800×1100×1600mm
