Buckle Folder (10 Buckles and 8 Buckles)
Request a Quote

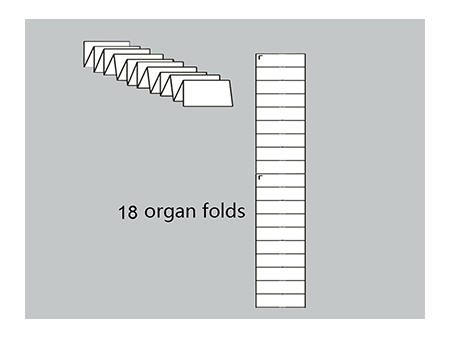

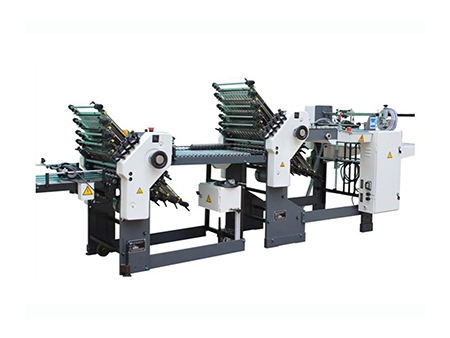

KMD’s 360T buckle folder (10 buckles and 8 buckles): This machine carries out a 10 times parallel folding through 10 buckles, with the tail buckles able to be equipped in both a horizontal or vertical manner, so that the machine carries out 8 time parallel folding and 8 time vertical folding. The folder itself carries out half folding, double parallel folding, roll folding and more.
Parameters- Max feeding sheet size (W*L): 360*750mm
- Min feeding sheet size (W*L): 50*100mm
- Sheet range: 40-157g
- Max folding roller speed: 180m/min
- Max. height of paper heap: 500mm
- Machine power: 3.75kw
- Machine netweight: 950kg
- Overall dimension (L*W*H) : 4000*1100*1415mm
