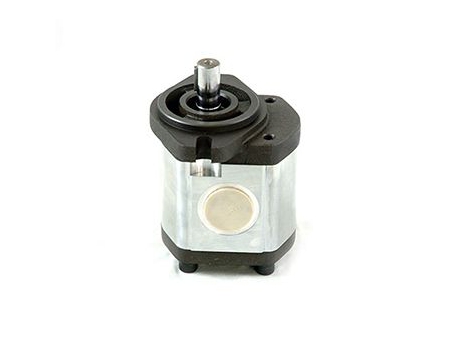

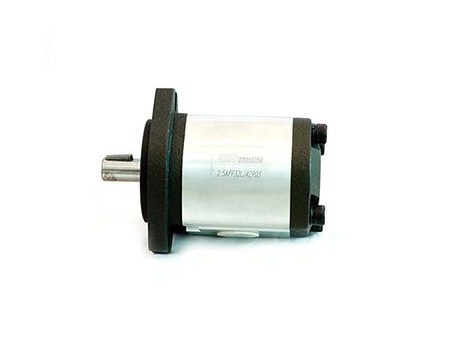

2.5MF | 10-40ml/r
Hydraulic Gear Motor
The 2.5MF series from our lineup of seven hydraulic gear motor series stands out with its displacement range of 10 to 40 ml/r, designed to address the sophisticated demands of various industrial applications. This series is celebrated for its robust contamination resistance, straightforward yet reliable structure, and longevity. Featuring automatic axial clearance compensation and bushings resistant to wear, the 2.5MF series ensures a prolonged operational life.
Key advantages of the 2.5MF series include
- A broad displacement spectrum from 10 to 40 ml/r, designed for diverse hydraulic system requirements.
- Superior load capacity and enhanced durability, affirming its suitability for heavy-duty use.
- Automatic axial clearance compensation, maintaining consistent performance and efficiency.

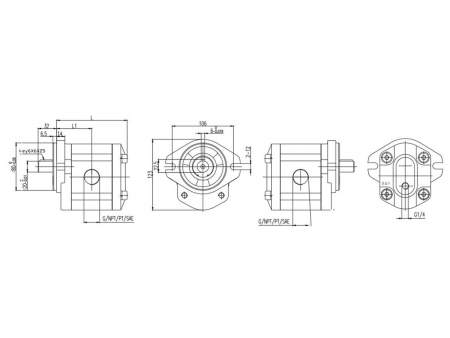

| Displacement (ml/r) | 10 | 16 | 20 | 25 | 27 | 30 | 32 | 36 | 40 |
| L1(mm) | 44 | 45 | 60 | 62 | 63 | 65 | 66 | 68 | 70 |
| L(mm) | 96 | 98 | 125 | 130 | 132 | 137 | 139 | 144 | 148 |
The 2.5MF series gear motors are engineered for dynamic performance in demanding applications. With a displacement range tailored for medium to high-capacity tasks, these motors are pivotal in driving essential machinery. Their robust design is particularly effective in systems requiring precise hydraulic control, making them an ideal choice for road rollers, excavators, and bulldozers. These applications benefit from the 2.5MF series' reliability and efficiency, ensuring that heavy-duty equipment operates smoothly under various conditions.
