Automatic Water Softener

Request a Quote

View All: http://watertreatmentdevice.com/2-1-2-automatic-water-softener.html

Softening water quality by removing scaling ions such as calcium and magnesium in water

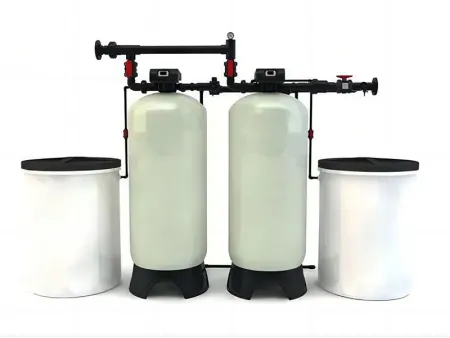

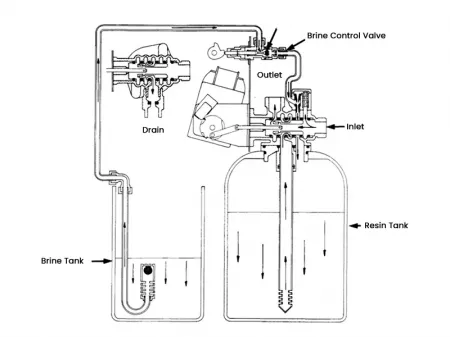

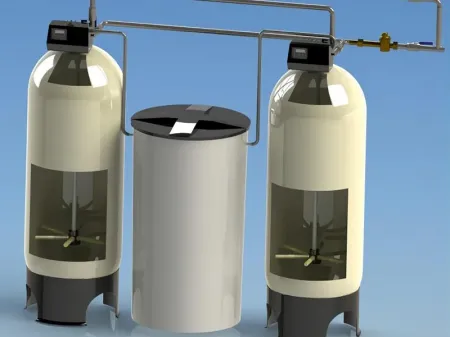

Our automatic water softener is designed to remove scale-forming ions such as calcium and magnesium, ensuring a consistent supply of softened water. It is available in continuous (RS series) or intermittent (R series) supply models to suit different operational needs. The device features a flow controller that automatically initiates the regeneration process, which can be customized according to specific requirements. It’s equipped with components that include a controller, a brine tank, and a resin tank. The use of lead-free brass valves ensures compliance with food safety standards, while Teflon-coated pistons reduce friction and extend the system's lifespan. This water softener not only improves water quality but also enhances the efficiency and durability of your water treatment infrastructure.

Applications

Ideal for softening water in boiler feedwater, heating systems, cooling units, and various industrial processes. Also used for reducing water hardness in commercial or industrial applications and as a pre-treatment for reverse osmosis systems.

Performance

Raw Water Hardness	≤5mEq/L
Soft Water Hardness	≤0.03mmol/L
Water Pressure	0.25Mpa-0.4Mpa
Power Supply	220V, 50HZ
Control Method	Automatic quantity-controlled regeneration

Standard Configurations

Control Valve	Brand: FLECK (1 unit)
Control Valve	Model: 9100
Ion Exchange Vessel	FRP fiberglass vessels (2 pcs)
Ion Exchange Vessel	Size: ⌀350×H1650mm
Ion Exchange Resin	Brand: Purolite (200L)
Ion Exchange Resin	Model: C100E
Brine Tank	Material: PE Volume: 200L (1 pc)

Specifications

Model	Flow Rate (T/H)	Working Mode	Vessel Size (⌀ ×H) (mm)	Vessel Quantity	Brine Tank Volume (L)	Brine Tank Quantity (pc)	Resin Volume (L)	Control Valve Model	Operation Mode	Dimensions (L×W×H) (mm)
ECH-R-1	1	Intermittent	250×1400	1	100	1	50	5600SM	Single valve, single vessel, flow rate type	650×400×1700
ECH-R-2	2		300×1400		100		75	5600SM		750×450×1700
ECH-R-3	3		350×1650		200		100	5600SM		950×600×2000
ECH-R-4	4		400×1650		200		150	5600SM		1000×600×2000
ECH-R-6	6		500×1750		300		200	2850SM		1150×650×2200
ECH-R-8	8		600×1900		500		300	2850SM		1400×800×2400
ECH-R-10	10		750×1900		800		550	2850SM		1900×1100×240
ECH-R-15	15		900×1900		1000		700	2900SM		2100×1100×2400
ECH-R-20	20		1000×1900		1000		850	2900SM		2200×1200×2400
ECH-RS-1	1	Continuous	250×1400	2	100		100	9100SM	Single valve, dual vessel, flow rate type (one in operation and one standby)	1100×500×1700
ECH-RS-2	2		300×1400		200		150	9100SM		1200×500×1700
ECH-RS-3	3		350×1650		200		200	9100SM		1400×650×2000
ECH-RS-4	4		400×1650		200		300	9100SM		1500×650×2000
ECH-RS-6	6		500×1750		300		400	9500SM		1800×800×2300
ECH-RS-8	8		600×1900		500		600	9500SM		2000×800×2400
ECH-RS-10	10T×2		750×1900		800	2	1100	2850#6	Dual valve, dual vessel, flow rate type (simultaneous operating)	2200×2000×2400
ECH-RS-15	15T×2		900×1900		1000		1300	2900#6		2200×2100×2600
ECH-RS-20	20T×2		1000×190		1000		1800	2900#6		2400×2400×2600
ECH-RS-130	30T×2		1200×2300		2000		2250	3900#6		3000×2800×3000
ECH-RS-150	50T×2		1500×2400		2000		3750	3900#6		3500×3200×2400
ECH-RS-10	10T		750×1900		800		1100	2850NT	Dual valve, dual vessel, flow rate type (one in operation and one standby)	2200×2100×2400
ECH-RS-15	15T		900×1900		1000		1300	2900#7		2200×2100×2600
ECH-RS-20	20T		1000×1900		1000		1800	2900#7		2400×2400×2600
ECH-RS-30	30T		1200×2300		2000		2250	3900#7		3000×2800×3000
ECH-RS-50	50T		1500×2400		2000		3750	3900#7		3500×3200×3200
