Full Integrated Water Processor
Water treatment device for filtration, sterilization and descaling
The full integrated water processor offers efficient filtration, sterilization, and descaling of water within cooling systems. Depending on specific requirements, it allows for both automatic and manual drainage options. The main components include the main unit, filter mesh, control box, and drainage valve. By combining high-frequency technology with electric field effects, this water treatment equipment effectively tackles issues such as electrochemical corrosion, scaling, and microbial growth. It utilizes multiple high-frequency bands and electrostatic high-voltage configurations to provide a comprehensive, high-power solution. Additionally, the design ensures that the inlet and outlet ports are aligned on the same axis, minimizing head loss and maximizing system efficiency (the energy of water per unit weight at any cross-section).

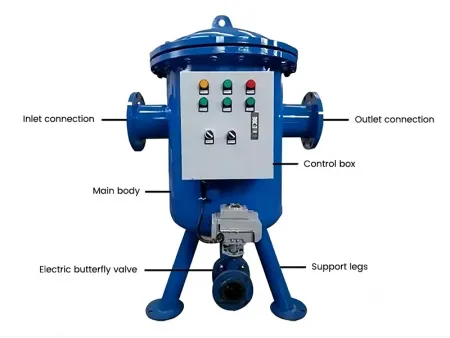

- Inlet connection
- Outlet connection
- Control box
- Main body
- Electric butterfly valve
- Support legs
Ideal for use in various water treatment systems, including central air conditioning water systems, boiler water systems, and industrial circulating water systems. It ensures efficient water treatment, maintaining optimal performance and extending the lifespan of your equipment in these demanding environments.
| Type | A Type | B Type | C Type | D Type | E Type | F Type |
| Control of Corrosion Rate | ≥90% | / | / | ≥90% | / | ≥90% |
| Ultrafiltration Rate | ≥90% | |||||
| Descaling Rate | / | ≥95% | / | ≥95% | ≥95% | ≥95% |
| Sterilization Rate | / | / | ≥92% | / | ≥92% | ≥92% |
| Pressure Loss | 0.005-0.03Mpa | |||||
| Power | 100-600W | |||||
| Power Supply | 198-242 AC, frequency 40-60Hz | |||||
| Safe Isolation Voltage | 5000V | |||||
| Working Environment | Temperature: -40℃~55℃ Humidity: ≤95% | |||||
| Lifespan | Over 10 years | |||||
| Water Temperature Required | A type:0℃~95℃ B type: 0℃~150℃ | |||||

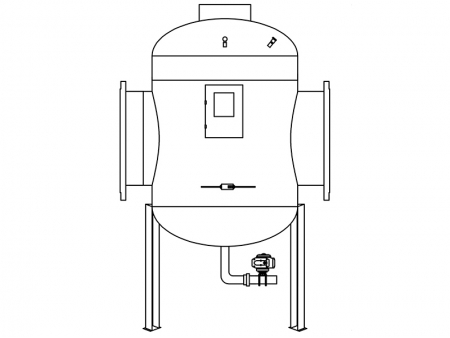

| Model (Example: A type) | Water Pipe Diameter (mm) | Capacity (T/h) | Quantity of Module (pc) | Power (W) | Net Weight (kg) | Dirty Water Outlet Diameter (mm) | Height H1 (mm) | Height H2 (mm) | Diameter ⌀1 (mm) | Diameter ⌀2 (mm) |
| 50 | 10-25 | 2 | 220 | 220 | 25 | 1000 | 670 | 770 | 500 | |
| 80 | 25-50 | 2 | 230 | 230 | 25 | 1040 | 695 | 770 | 500 | |
| 100 | 50-80 | 2 | 260 | 250 | 50 | 1140 | 785 | 900 | 500 | |
| 150 | 80-160 | 2 | 270 | 330 | 50 | 1200 | 820 | 900 | 600 | |
| 200 | 160-300 | 3 | 320 | 470 | 50 | 1290 | 880 | 1000 | 700 | |
| 250 | 300-450 | 3 | 330 | 500 | 50 | 1360 | 920 | 1000 | 700 | |
| 300 | 450-700 | 4 | 380 | 690 | 50 | 1510 | 1040 | 1100 | 800 | |
| 350 | 700-1000 | 4 | 390 | 720 | 50 | 1590 | 1095 | 1100 | 800 | |
| 400 | 1000-1200 | 5 | 450 | 940 | 80 | 1740 | 1220 | 1240 | 900 | |
| 450 | 1200-1500 | 5 | 460 | 980 | 80 | 1840 | 1290 | 1240 | 900 | |
| 500 | 1500-2000 | 5 | 520 | 1150 | 80 | 1940 | 1375 | 1300 | 1000 | |
| 600 | 2000-3000 | 5 | 530 | 1200 | 80 | 2060 | 1425 | 1340 | 1000 |
Note: The equipment can be customized to meet your specific requirements, with a maximum capacity of 30,000 tons per hour. These units are available with working pressure options of 1.0MPa or 1.6MPa.
