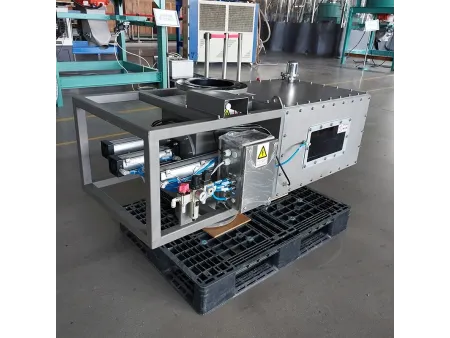

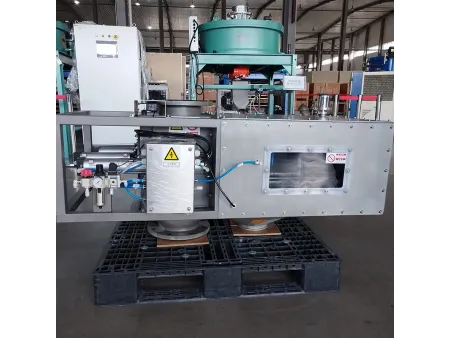

Permanent Magnetic Separator

Magnetic filter for automatic removal of ferromagnetic particles from poorly flowing products prone to bridging

  • Surface magnetic: 9000-13000GS
  • Welding standard: General/sanitary grade (optional)
  • Operating pressure: Atmospheric pressure/positive pressure/negative pressure
  • Operating temperature: 80 to 200℃
  • Processing capacity : 3.5-14m³/h
  • Installed power: 0.27kW
  • IP grade: IP54/Dust-EX/Gas-EX (optional)

Efficient iron removal can be challenging when dealing with dry powders and granular materials that have poor flowability and a tendency to form bridges. The automatic rotary magnetic separator, developed with proprietary technology, is designed to address these issues by ensuring continuous separation of ferrous impurities while preventing material blockages. The rotary mechanism keeps materials in motion, increasing contact with the magnetic field and improving impurity capture efficiency. Integrating this system into production lines helps reduce labor costs, minimize safety risks, and enhance production efficiency. Its automated operation ensures stable performance and uninterrupted material flow, making it an ideal solution for industries requiring high-purity processing.

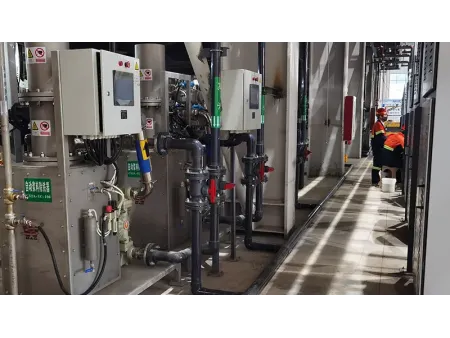

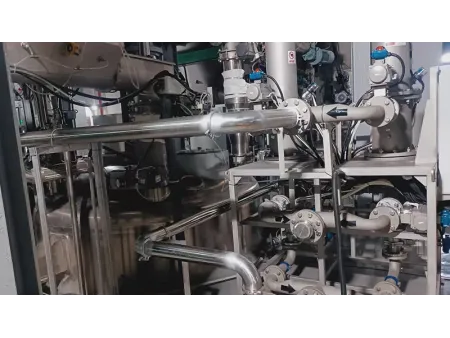

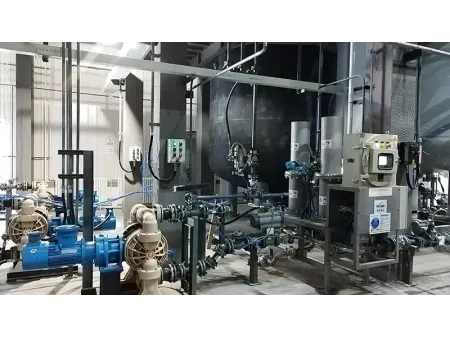

Applications
  • Lithium Battery Industry: Iron phosphate, lithium iron phosphate
  • Food Industry: Chili powder, plant fiber powder
  • Chemical Industry: Resin
Specifications
Model SWa-MRG-200 SWa-MRG-250 SWa-MRG-300 SWa-MRG-350
Operating pressure Atmospheric pressure Positive pressure(< 0.1Mpa) Negative pressure
Operating temperature 80℃, 100℃, 120℃, 150℃, 200℃
Material Flow passage 304, 316L
Non flow passage 304, 316L
Sealing SIL, PTFE, NBR, FKM, EPDM, Others
Surface Treatment Internal Ra0.4 bright, Ra0.8 bright, Brushed, PTFE coated, F40(0.1T) coated, F40(0.2T) coated, Others
External Ra0.4 bright, Ra0.8 bright, Blasted, Brushed
Surface magnetic 9000GS, 10000GS, 11000GS, 12000GS, 13000GS
Welding standard General, Sanitary grade
Connection standard HG/T20592-2009 PN6, HG/T20592-2009 PN10, DIN2502, JIS/KS 10K, ASME/ANSI, Class150, Others

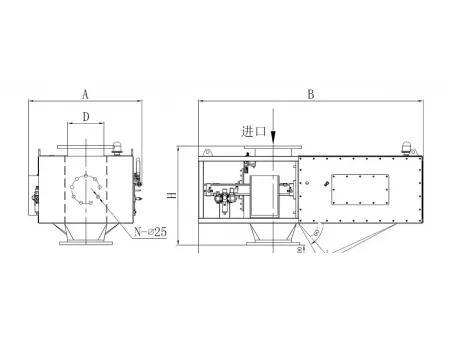

Dimensions (mm) Connection size DN200 DN250 DN300 DN350
A 785 855 905 955
B 1545 1695 1790 1985
B1 540 565 590 660
B2 380 405 430 455
D 219 273 325 377
H 700 750 800 850
Number of magnetic bars (N-Ø25) 7 9 11 13
Processing capacity (m³/h) 3.5 6 10 14
1* Motor power (kW) 0.37 0.55 0.75 1.1
2* Air consumption (L/min) 180 200 220 250
3* Net weight (kg) 280 330 390 450
Pneumatic cylinder AirTAC, SMC, FESTO
Control cabinet IP grade IP54, Dust-EX, Gas-EX, EX-proof class
Dimensions 500×400×250mm
RAL7035
Colour
DCS access, Others
Port

Notes
1.Motor power is based on the SWa-MRG-200 model, with a rated power of 370W and an actual operating power consumption of approximately 270W.
2.Air consumption at 0.6 MPa pressure for the SWa-MRG-200 model is approximately 180L/min.
3.Net weight is determined based on the actual condition at the time of shipment.

Features
  • Capable of reaching a maximum surface magnetic strength of 13,000 GS and operating at temperatures up to 250°C, making it suitable for demanding industrial applications.
  • Built with a positive pressure-resistant structure to prevent material leakage and ensure a secure working environment.
  • Designed for 24-hour continuous operation, maintaining efficiency without downtime.
  • User-friendly operation with an automated PLC HMI control system, allowing for fully automatic local operation.
  • Supports a wide voltage input range, ensuring adaptability to different power supply conditions.
  • Energy-efficient design with low power consumption, keeping operating costs minimal. The separator's average energy consumption is below 0.04 kW, making it an environmentally friendly solution.
