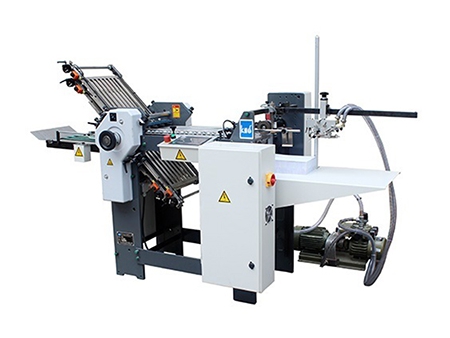

4 Buckle Paper Folding Machine
Request a Quote

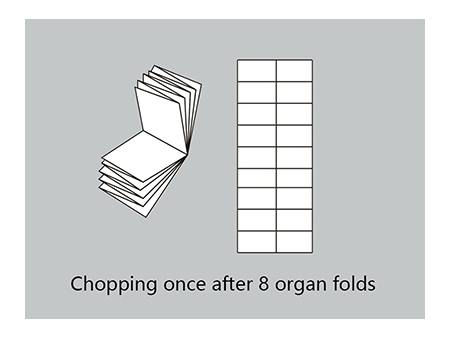

KMD’s 4 buckle paper folding machine has a maximum paper size of 360×750mm. The machine is equipped with 4 buckle plates. It can directly realize 4 times parallel folding, and it can also be configured 2 tail buckles, 4 tail buckles, 6 tail buckles, 8 tail buckles, 10 tail buckles according to the requirements to achieve different complex folding methods such as: half folding, double parallel folding, roll folding and so on.
Parameters- Max feeding sheet size (W*L) : 360*750mm
- Min feeding sheet size (W*L) : 50*100mm
- Sheet range : 40-157g
- Max folding roller speed : 180m/min
- Max. height of paper heap : 500mm
- Machine power : 2.5kw
- Machine net weight : 350kg
- Overall dimension(L*W*H) : 2700*1000*1415mm
