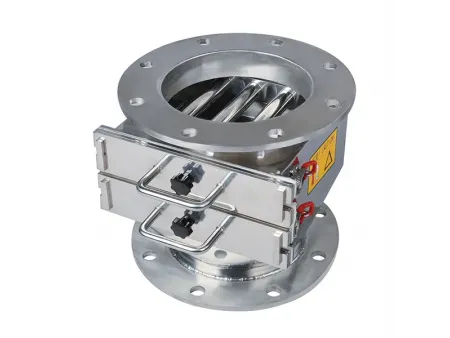

Permanent Magnetic Separator

Liquid magnetic separator for removing ferrous contaminants from liquids of all viscosities

  • Options of magnetic drawer: Standard type, Heat resistant type, Easy cleaning type
  • Operating temperature: ≤100℃
  • Design temperature: ≤120℃
  • Magnetic performance: 10000-13000GS (±500GS)
  • Operating pressure: ≤0.1MPa
  • Flow rate: Depending on connection
  • Connection: DN100-DN300

Drawer magnetic separators effectively remove ferrous contaminants and ferromagnetic particles from dry powders, flakes, and granular materials. This magnetic separator improves material purity while also preventing damage to downstream production equipment caused by metal fragments. Commonly used in industries like lithium batteries, chemicals, ceramics, plastics, dyes, mining, and environmental protection, the magnetic drawer is necessary for ensuring consistent material quality and optimizing production efficiency in high-demand sectors.

Applications

The magnetic drawer separator is highly effective in removing ferrous contaminants from a range of materials. It is widely used in industries that require precise separation to maintain product quality and protect equipment.

  • Lithium Battery Industry:
    Ternary precursors, lithium carbonate, lithium iron phosphate. Clients GEM, Ganfeng Lithium, Zhongwei New Energy.
  • Food Industry:
    White sugar, grains, tea leaves. Clients Jianming Tea, Youyi Food, Red Sun Food.
  • Pharmaceutical Industry:
    Creatine, raw pharmaceutical materials. Clients CR Land, Zhejiang Pharmaceuticals, Huakang Pharmaceutical.
  • Chemical Industry:
    PVDF, coatings. Clients Juhua, Xinhua Chemical.
Specifications

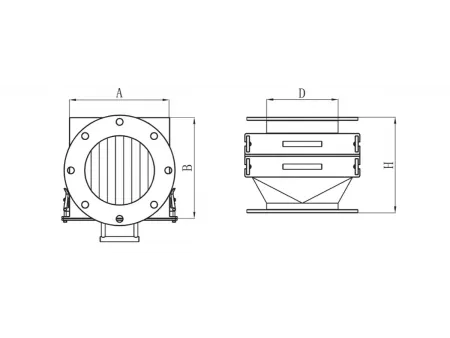

Model Dimensions (mm) Weight (kg)
D H A B
SWd-NR-150 159 286 208 205 20
SWd-NR-200 219 286 258 255 28
SWd-NR-250 273 286 308 305 33
SWd-NR-300 325 286 358 355 43
SWs-NR-150 159 216 208 205 16
SWs-NR-200 219 216 258 255 20
SWs-NR-250 273 216 308 305 24
SWs-NR-300 325 216 358 355 31

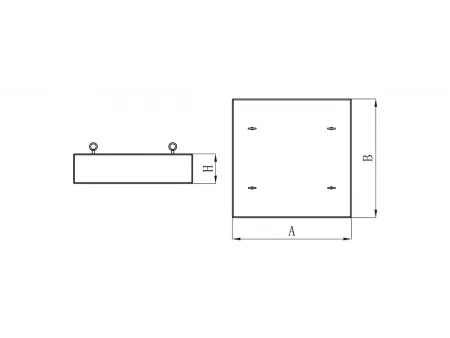

Model Dimensions (mm) Weight (kg)
H A B
SWd-NS-2020 270 208 205 16.5
SWd-NS-2525 270 258 255 25.5
SWd-NS-3030 270 308 305 32.5
SWd-NS-3535 270 358 355 39
SWd-NS-4040 270 408 405 50
SWs-NS-2020 200 208 205 12.5
SWs-NS-2525 200 258 255 19.5
SWs-NS-3030 200 308 305 23.2
SWs-NS-3535 200 358 355 27
SWs-NS-4040 200 408 405 35.5
Features

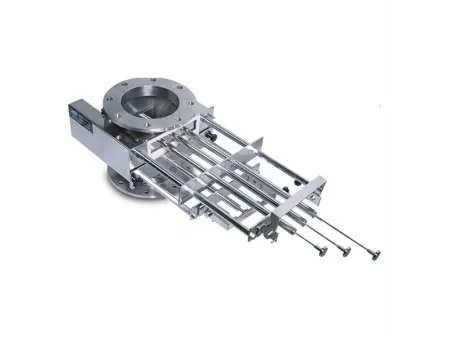

  • The magnetic drawer separator is available in two versions:the standard (N Style), which offers a magnetic field strength of up to 12,000 GS, and the easy cleaning (E Style), which provides up to 8,000 GS.
  • Round or square flange connections are offered for easy installation, allowing the separator to be integrated into various pipeline systems as per customer requirements.
  • The separator operates efficiently at temperatures of up to 80°C, with custom versions available that can withstand temperatures between 80°C and 350°C for specialized applications.

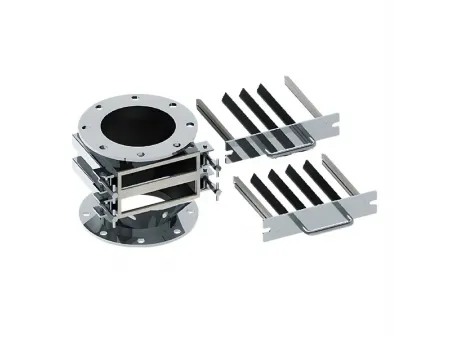

  • Magnetic grids are customizable to meet specific needs, available in single, double, or multi-layer configurations.
  • Constructed with 304 and 316L stainless steel, the magnetic drawers offer durability, corrosion resistance, and long-term reliability, making them ideal for harsh industrial environments.
