Permanent Magnetic Separator

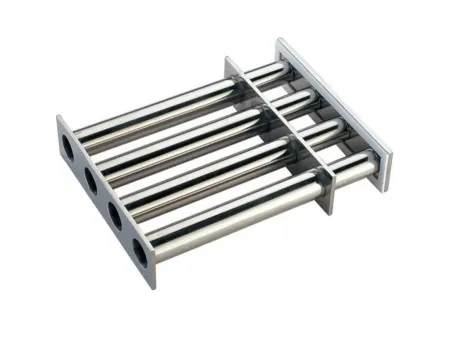

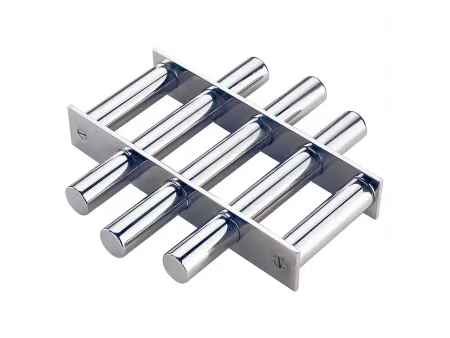

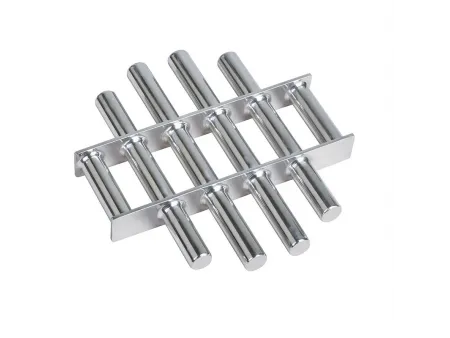

Grate magnet separator for capturing and separating ferrous tramp metal in hoppers, drawers, chutes and bins

Removing ferrous contaminants is an important step in ensuring product purity and equipment protection. Magnetic grates, made up of multiple magnetic rods, efficiently capture iron filings, metal fragments, and other magnetic impurities, preventing contamination in food processing, chemical production, and plastics manufacturing. Their ability to trap unwanted metal particles helps maintain smooth operations and reduce wear on machinery.

Applications

Many production setups integrate magnetic grates into storage bins, drawer boxes, and hoppers for effective iron removal. When handling high-wear materials, special coating treatments can be applied to extend durability and maintain separation efficiency.

Specifications

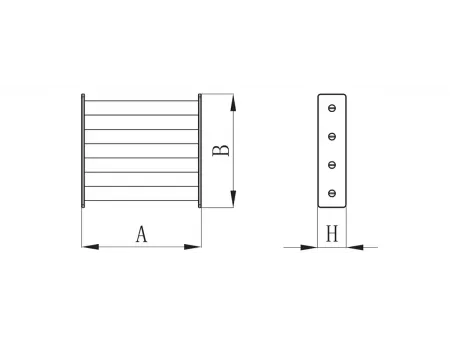

Model Dimensions (mm) Number of magnetic bars Weight (kg)
A B H
SWMG10/10S 100 100 40 2 1
SWMG15/15S 150 150 40 3 2.2
SWMG20/20S 200 200 40 4 3.7
SWMG25/25S 250 250 40 5 5.5
SWMG30/30S 300 300 40 6 8
SWMG35/35S 350 350 40 7 10
SWMG40/40S 400 400 40 8 13.5
SWMG45/45S 450 450 40 9 17
SWMG50/50S 500 500 40 10 20.5

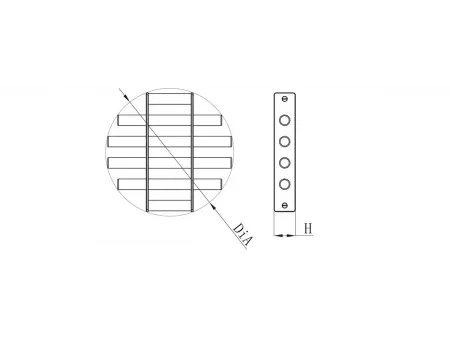

Model Diameter H Number of magnetic bars Weight (kg)
SWMG-R100 100 40 2 0.9
SWMG-R150 150 40 3 1.5
SWMG-R200 200 40 4 2.5
SWMG-R250 250 40 5 3.7
SWMG-R300 300 40 6 5.5
SWMG-R350 350 40 7 7.5
SWMG-R400 400 40 8 10
SWMG-R450 450 40 9 12.3
SWMG-R500 500 40 10 15.5
Features
  • 304 and 316L stainless steel construction ensures corrosion resistance and prevents contamination.
  • Standard magnetic grates consist of 25mm-diameter magnetic rods arranged with 50mm center spacing, secured by screws or welding.
  • Polished surface options meet food and pharmaceutical-grade standards, making them suitable for hygienic applications.
  • Standard operating temperature reaches 80°C, with high-temperature versions available for conditions up to 350°C.

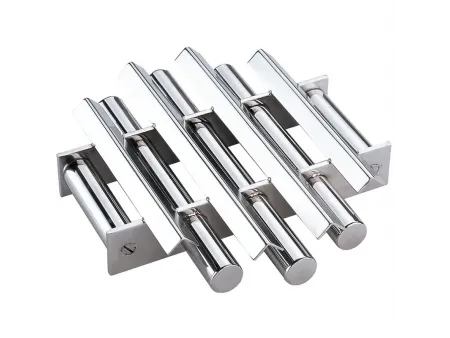

  • Multiple designs are available, including standard models, easy-to-clean versions, and grates with deflectors or flow guides, as well as custom square or round configurations to fit specific installation needs.
