Ceramic Vision Inspection Machine
Optical sorting machine with 10 CCD cameras for the visual inspection and measurement of ceramic components
Optical sorting machine with 10 CCD cameras for the visual inspection and measurement of ceramic components

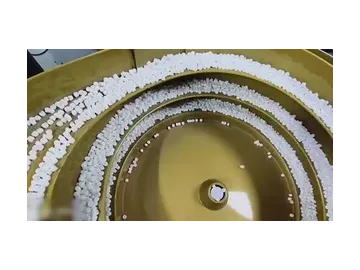

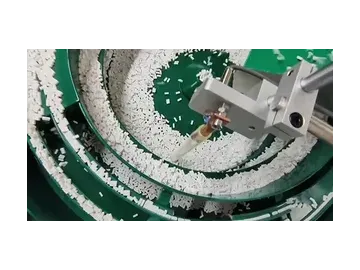

The ceramic vision inspection machine is purpose-built for high-precision inspection of ceramic components. It features a vibration bowl feeder and a 360° AI-powered vision system, enabling full-surface analysis with exceptional speed and accuracy.
Equipped with 10 industrial-grade CCD cameras, the system inspects both dimensional accuracy and surface quality, configurable to detect:
- Key dimensions such as outer diameter and height
- Surface defects including cracks, scratches, and blockages
- Inspection speed: up to 300 pcs/min
- Measurement precision: ±0.01 mm
Perfect for automating ceramic part quality control, this machine helps you maintain high production standards with consistent, real-time accuracy. Let’s talk about integrating it into your line.
This system can be configured to inspect:
- Dimensions
Outer diameter
Height
Other customer-specified measurements - Surface Defects
Cracks
Scratches
Blockages
Additional visible flaws based on product type
Ensure every ceramic component meets strict quality standards, reach out to learn how this solution can support your production goals.
| General | Power | 1.8 kW | |
| Air pressure | 0.4-0.6Mpa,air inlet pipe Ø16mm | ||
| Machine dimensions | 1100(L)×1700(W)×1800(H)mm | ||
| Machine weight | 350kg | ||
| Working conditions | Less than 90% RH | ||
| Visual inspection | Inspection speed | Design speed: 80-3000 pcs/min | |
| CDD Camera | Image sensor | Basler (German) | |
| Resolution | 2560×1920,1280×1024 | ||
| Inspection accuracy | ±0.01mm | ||
| Lens | Optical lens | Custom lens | |
| Depth of field (DoF) | 0.2-3mm | ||
| Light source | AOI light source | ||
| Feeding | Precision belt feed system | Precision belt is made from special conductive material through integrated forming process,ensuring high accuracy (customized) | |
