Clear Patterned Glass
Color: clear
Thickness: 3 mm, 3.5 mm, 4 mm, 4.5 mm, 5 mm, 5.5 mm, 6 mm, 8 mm, 10 mm
Size: 1830*1220 mm, 2000*1500 mm, 2000*1600 mm, 2140*1650 mm, 2140*1830 mm, 2200*1650 mm, 2200*1900 mm, 2440*1830 mm, 3300*2140 mm, custom size acceptable
Standard: JC/T511-2002 (China) and EN572 (EU)

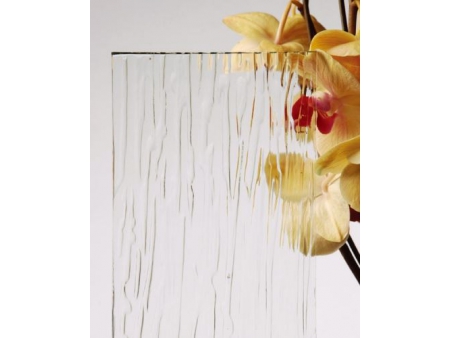

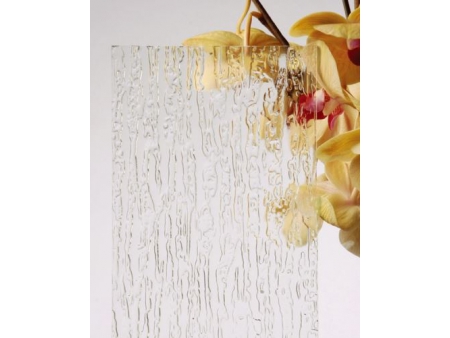

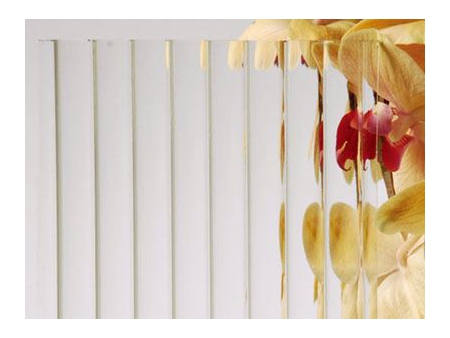

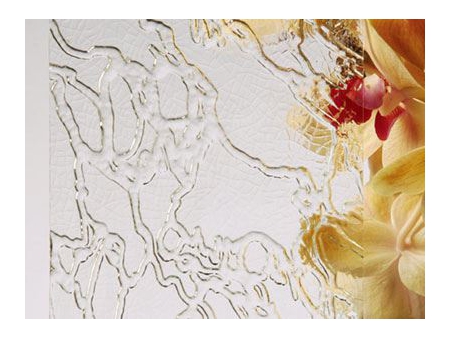

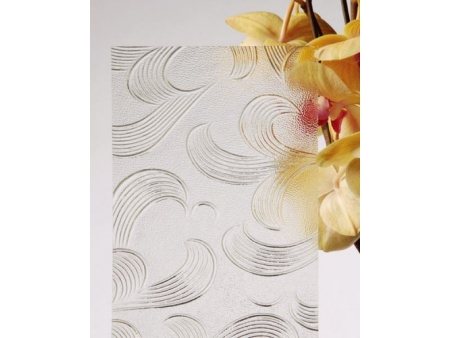

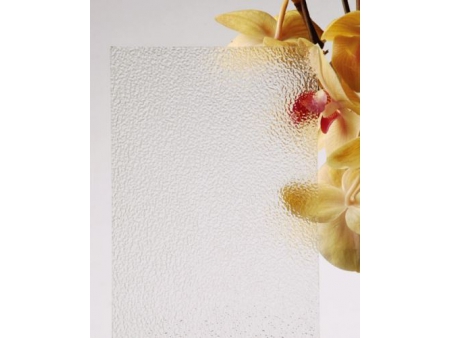

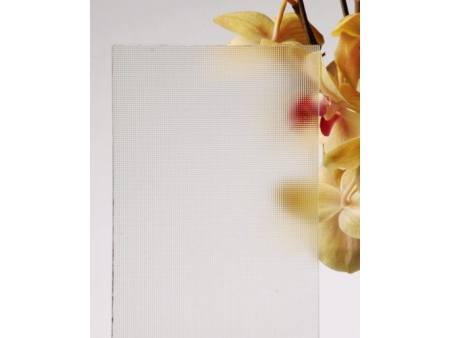

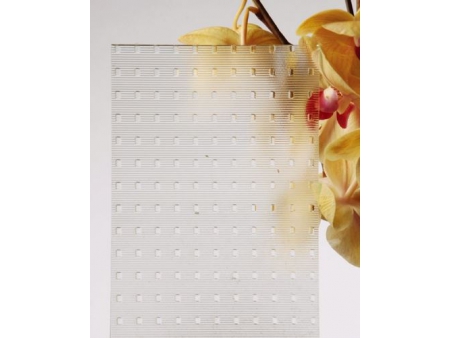

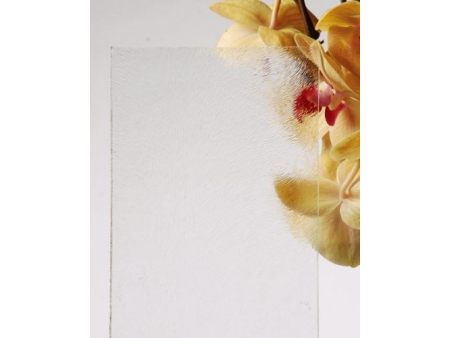

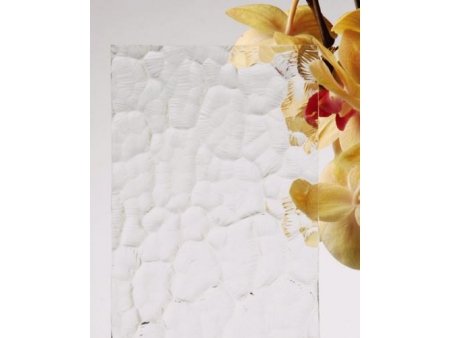

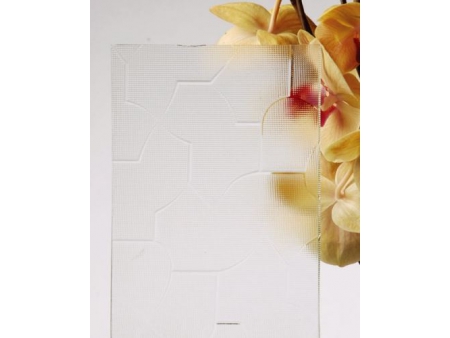

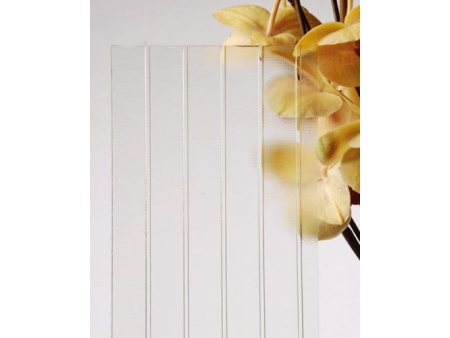

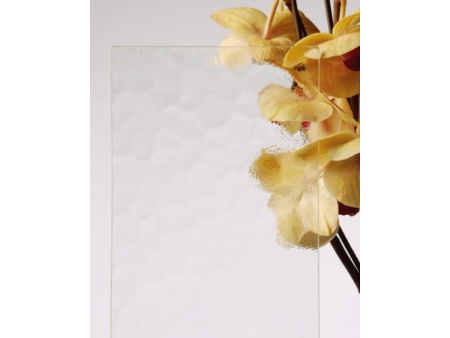

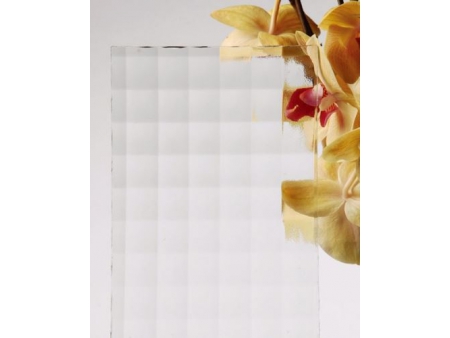

- Aqualite

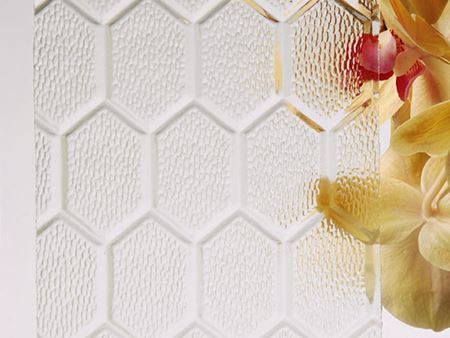

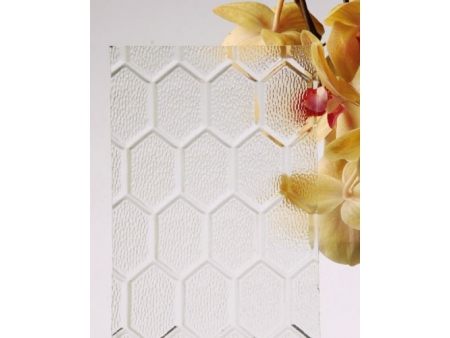

- Beehive
- Chinchilla
- Diamond
- Hissicross
- Karatachi
- Map
- Masterlite
- Mayflower
- Millennium
- Mistlite
- Moru
- Nashiji
- Oceanic
- Raindown
- Waterfall
- Weaver

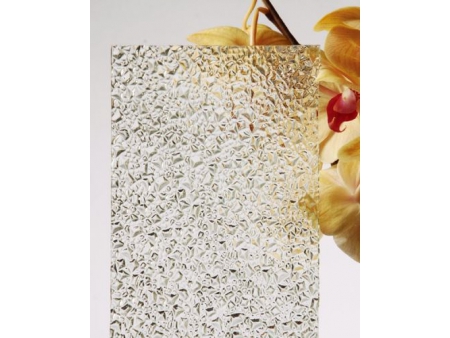

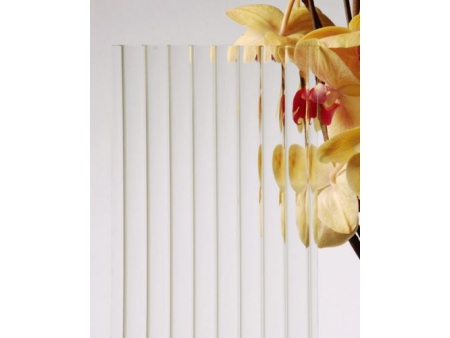

Clear patterned glass is also known as figured glass, rolled glass, obscured glass or frosted glass. It is manufactured using a rolling process that involves pressing patterned rollers onto one or both sides of the glass before it is tempered. This creates a decorative pattern on the surface, which is why clear patterned glass has figures in one or both surfaces.
The patterns pressed onto the glass have different depths, which create a beautiful diffuse effect when light passes through, allowing objects behind the clear patterned glass to remain visible but become obscured when viewed from the other side. The surface of the glass features a variety of geometric patterns including squares, dots, diamonds, and stripes, making it very attractive and perfect for decoration.
Our clear patterned glass can be cut, drilled, and edged with ease, allowing you to customize it to your liking. Additionally, our glass can undergo deep processing such as tempering, laminating, acid washing or silk screen printing, offering endless possibilities for its use.
- Sharing the same features of flat glass, including the way of use and the manufacturing process
- Varied patterns making it decorative and aesthetically pleasing in different scenarios
- 1. Raw Material
- 2. Furnace
- 3. Glass Forming Rollers
- 4. Lehr
- 5. Cutting
- 6. Final Product
Our clear patterned glass is designed to allow natural light to flow through while maintaining privacy. It’s ideal for creating a modern and stylish look for indoor partitions, bathroom doors, windows while also providing functionality. Additionally, our clear patterned glass can be used to make glass furniture, adding elegance and sophistication to any space.
