FUJI series escalators are designed and manufactured by fully utilizing new materials and advanced technologies from both domestic and international sources. The truss structure is made of high-quality angle steel, and the entire system features a modular design. With a large-diameter step roller, a user-friendly handrail entry device (handrail guard safety device), and a powerful CPU computer control, the escalators provide passengers with safe, reliable, smooth, simple, and efficient transportation, and ensure your peace of mind, trust, and comfort.

  • Speed

    0.5m/s

  • Angle of elevation

    30°, 35°

Features
  • FUJI inverter ensures smooth and quiet operation of the escalator, with automatic speed control based on passenger flow, resulting in significant energy savings.

  • The drive, acceleration, chain, and step components are constructed according to European design and quality standards, providing smooth and reliable performance.

  • The short steps are directly connected to the drive chain, enabling quieter and smoother operation of the escalator and facilitating easier maintenance, thus extending the product's lifespan.

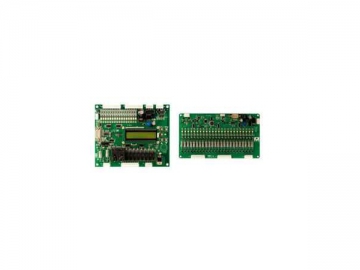

  • With a powerful CPU motherboard for computer control, the escalator is constantly monitored in real-time and it can automatically stop for prompt action in case of any abnormalities.

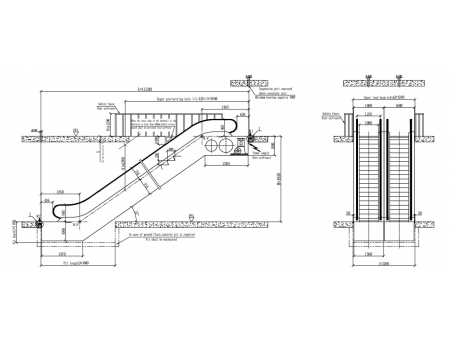

Specifications (take 35-degree escalator as an example)
Model FHE Operational environment Indoor
Lifting height 4930mm Layout Double
Step width 1000mm Number of flat steps 1.5 flat steps
Angle 35° Horizontal span 11300 mm
Speed 0.5 m/s Transportation capacity 6000 people/h
Net weight 73×2 kN Motor power 11 kW
Reactions R1 70×2 kN Power supply 380V 50HZ
Reactions R2 63×2 kN Lighting supply 220V 50HZ
You can also match the escalator interior to your liking

Signal system, Ceiling series, Landing door series, We have different styles for you to choose
