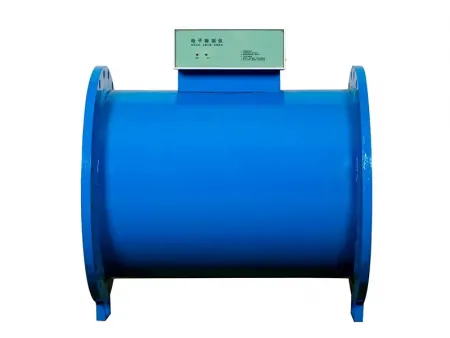

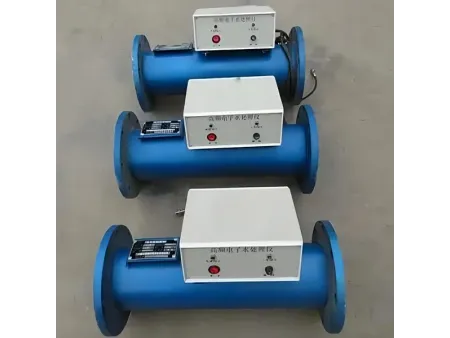

Electronic Descaling Device

Request a Quote

View All: http://watertreatmentdevice.com/2-1-4-3-electronic-descaling-device.html

Achieving the purpose of sterilization and algae elimination through physical means

The electronic descaling device uses high-frequency alternating electromagnetic fields generated by electronic components. When water flows through this device, its physical properties change. Large molecular clusters break down into individual water molecules, increasing their dipole moment. These polarized water molecules surround the dissolved salt ions in the water, reducing their movement and electrostatic attraction. This process significantly decreases the chances of salt ions colliding and forming scale, effectively preventing scale buildup. By keeping your water systems free from deposits, this device helps maintain efficiency and prolongs the lifespan of your equipment.

Power supply: 220V/50Hz
Performance: Total Hardness ≤700kg/L (measured by CaCo3), Flow Velocity=2.8m/s
Descaling Rate: ≥90%
Sterilization Rate: ≥85%
Copper Tube Corrosion Rate: ≤0.125mm/a
Shell Material: Q235

Applications

Ideal for use in central air conditioning water systems, hot water boiler systems, and similar applications. The electronic descaling device ensures these systems remain free from scale buildup, maintaining efficiency and extending equipment lifespan.

Specifications

Model	Inlet/Outlet Diameter (mm)	Dimensions (L×W×H) (mm)	Net Weight (kg)	Operating Weight (kg)	Power (W)
ECH-DG-50	DN50	505×165×280	15	19	50
ECH-DG-65	DN65	505×185×290	17	21	50
ECH-DG-80	DN80	505×200×310	19	24	50
ECH-DG-100	DN100	505×220×320	20	25	50
ECH-DG-125	DN125	505×250×335	22	27	50
ECH-DG-150	DN150	505×285×355	24	32	50
ECH-DG-200	DN200	555×340×410	36	53	100
ECH-DG-250	DN250	555×395×460	50	77	100
ECH-DG-300	DN300	555×445×545	68	107	100
ECH-DG-350	DN350	605×505×600	85	143	100
ECH-DG-400	DN400	655×570×660	119	201	100
ECH-DG-450	DN450	705×620×710	166	278	100
ECH-DG-500	DN500	755×675×760	225	372	100
ECH-DG-600	DN600	805×785×865	250	476	100
ECH-DG-700	DN700	1010×900×970	295	641	100
ECH-DG-800	DN800	1310×1015×1080	396	949	100
ECH-DG-900	DN900	1510×1115×1180	480	1307	100
